Installing and removing drives
The PC casing can accommodate a total of five drives:
● three accessible drives
(two 5 1/4 inch drives and one 3 1/2 inch drive)
● two non-accessible drives
(both 3 1/2 inch drives with half installation height)
"Accessible drives" are e.g. DVD or CD ROM drives, into which a data carrier can be inserted from
outside. Non-accessible drives are e.g. hard disk drives.
IDE drives
Four IDE drives are supported as standard equipment. Ideally, hard disks are connected to IDE
interface 1 and other drives (e.g. CD ROM drive) to IDE interface 2 (see also the technical manual
for the mainboard).
Installing an accessible drive
► Open the casing (see "Opening the casing").
1
2

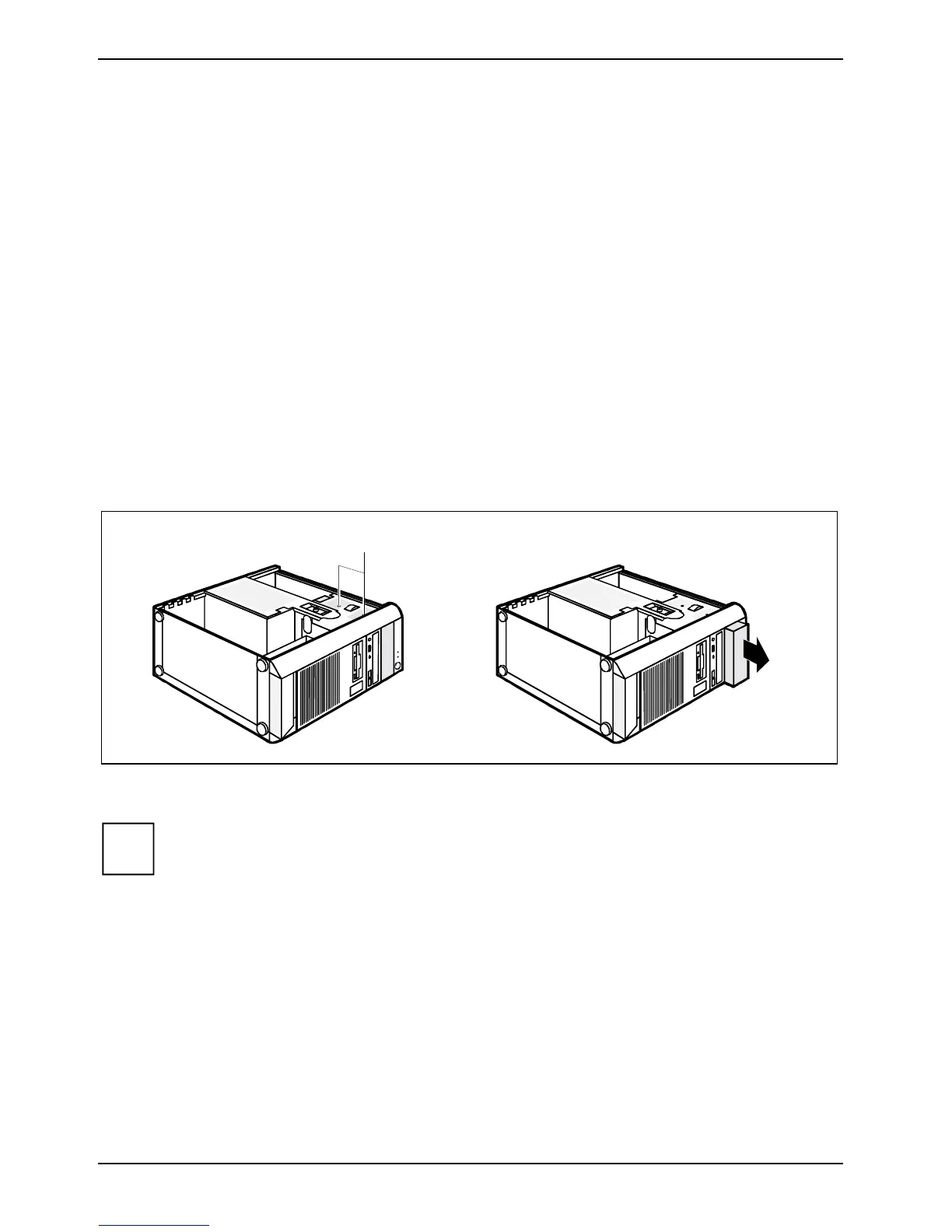

► Remove the screws (1) and take the blind insert out of the casing (2).
i
Do not dispose of the blind insert. For cooling, protection against fire and in order to
comply with EMC regulations, you must refit the blind insert if you remove the drive later.
► Take the new drive out of its packaging.
