SERVICE PARTS INFORMATION 2

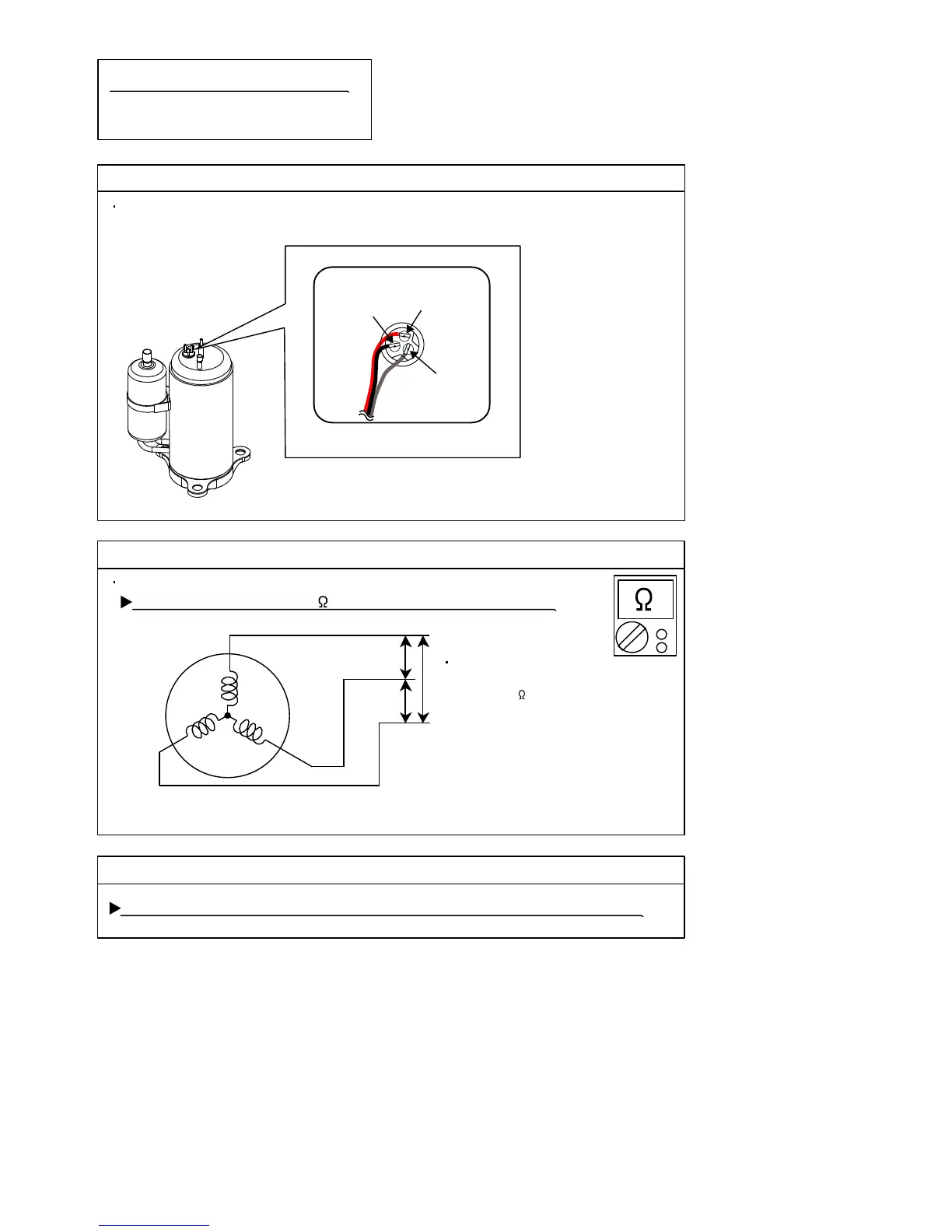

Check Point 1 : Check Connection
Check Point 2 : Check Winding Resistance
Check Point 3 : Replace Main PCB
T(W)
S(V)
R(U)
Inverter Compressor
Check terminal connection of Compressor
(loose or incorrect wiring)
Check winding resistance of each terminal
If the resistance value is 0 or infinite, replace Compressor.
If the symptom does not change with above Check 1, 2, replace Main PCB.
02-30
S(V)
R(U)
(RED)
T(W)
(BLACK)
Terminal cover opened
(WHITE)
AOTG18/ 22/ 24KMCA
Resistance Value :
0.818 at 20°C
AOTG18/ 22/ 24KMCA
