Fujitsu AOTG36LATT User Manual

- (02 - 06) -
OUTDOOR UNIT AOTG18-24KMCA OUTDOOR UNIT AOTG18-24KMCA

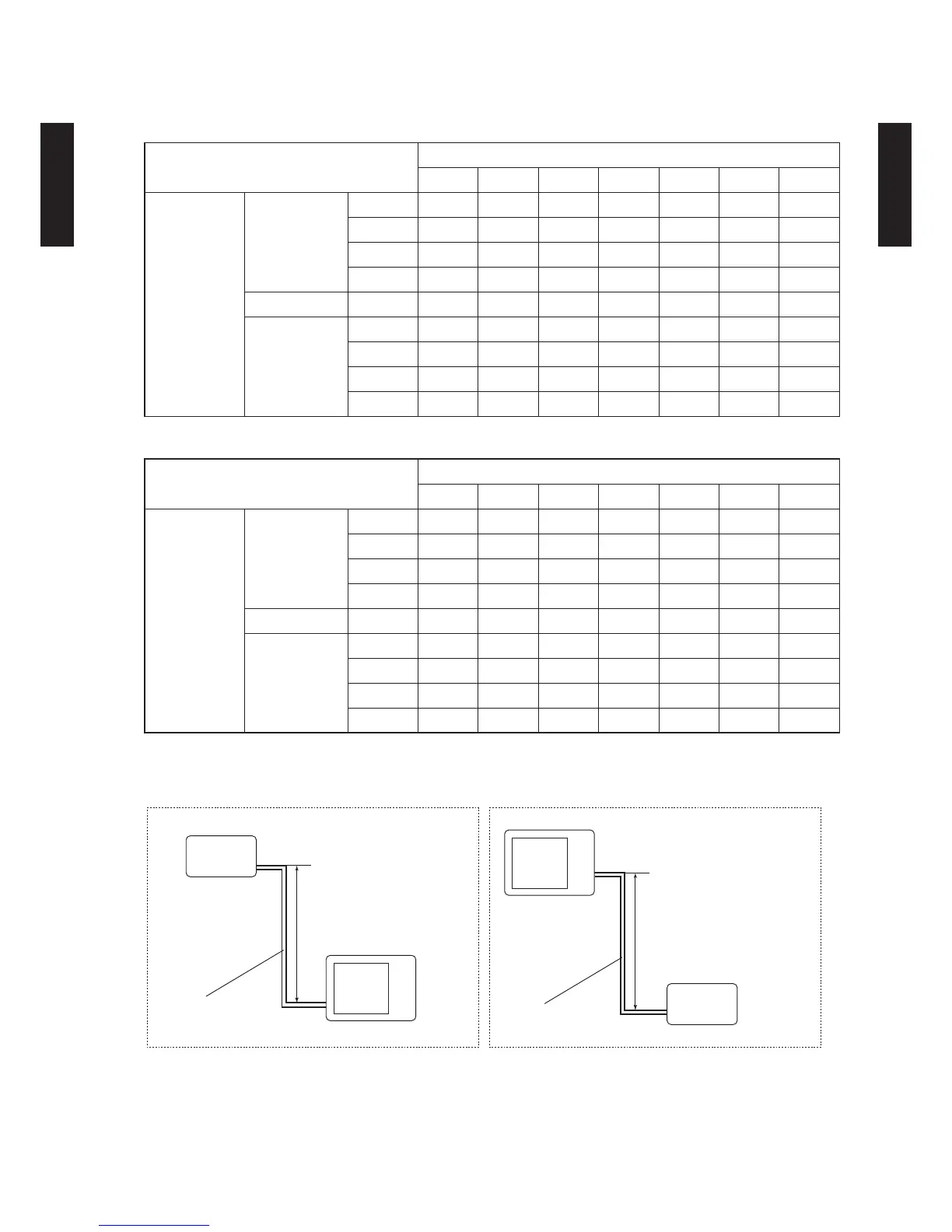

CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
MODEL
•
: AOTG18KMCA
Height difference H

1: Indoor unit is higher than outdoor unit.

2: Indoor unit is lower than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
5 7.5 10 15 20 25 30
Height
difference H
(m)
Û
1
Indoor unit is
higher than
outdoor unit.
20 - - - - 0.936 0.921 0.905
10 - - 0.987 0.962 0.936 0.921 0.905
7.5 - 1.000 0.987 0.962 0.936 0.921 0.905
5 0.998 1.000 0.987 0.962 0.936 0.921 0.905
0 0.998 1.000 0.987 0.962 0.936 0.921 0.905
Û
2
Indoor unit is
lower than
outdoor unit.
-5 0.993 0.995 0.982 0.957 0.931 0.916 0.900
-7.5 - 0.993 0.980 0.955 0.929 0.914 0.898
-10 - - 0.977 0.952 0.927 0.911 0.896
-20 - - - - 0.917 0.902 0.887
COOLING
Pipe length (m)
5 7.5 10 15 20 25 30
Height
difference H
(m)
Û
1
Indoor unit is
higher than
outdoor unit.
20 - - - - 0.926 0.925 0.923
10 - - 0.975 0.958 0.942 0.940 0.939
7.5 - 0.988 0.979 0.962 0.946 0.944 0.943
5 0.991 0.992 0.983 0.966 0.949 0.948 0.946
0 0.999 1.000 0.991 0.974 0.957 0.956 0.954
Û
2
Indoor unit is
lower than
outdoor unit.
-5 0.999 1.000 0.991 0.974 0.957 0.956 0.954
-7.5 - 1.000 0.991 0.974 0.957 0.956 0.954
-10 - - 0.991 0.974 0.957 0.956 0.954
-20 - - - - 0.957 0.956 0.954
H H
