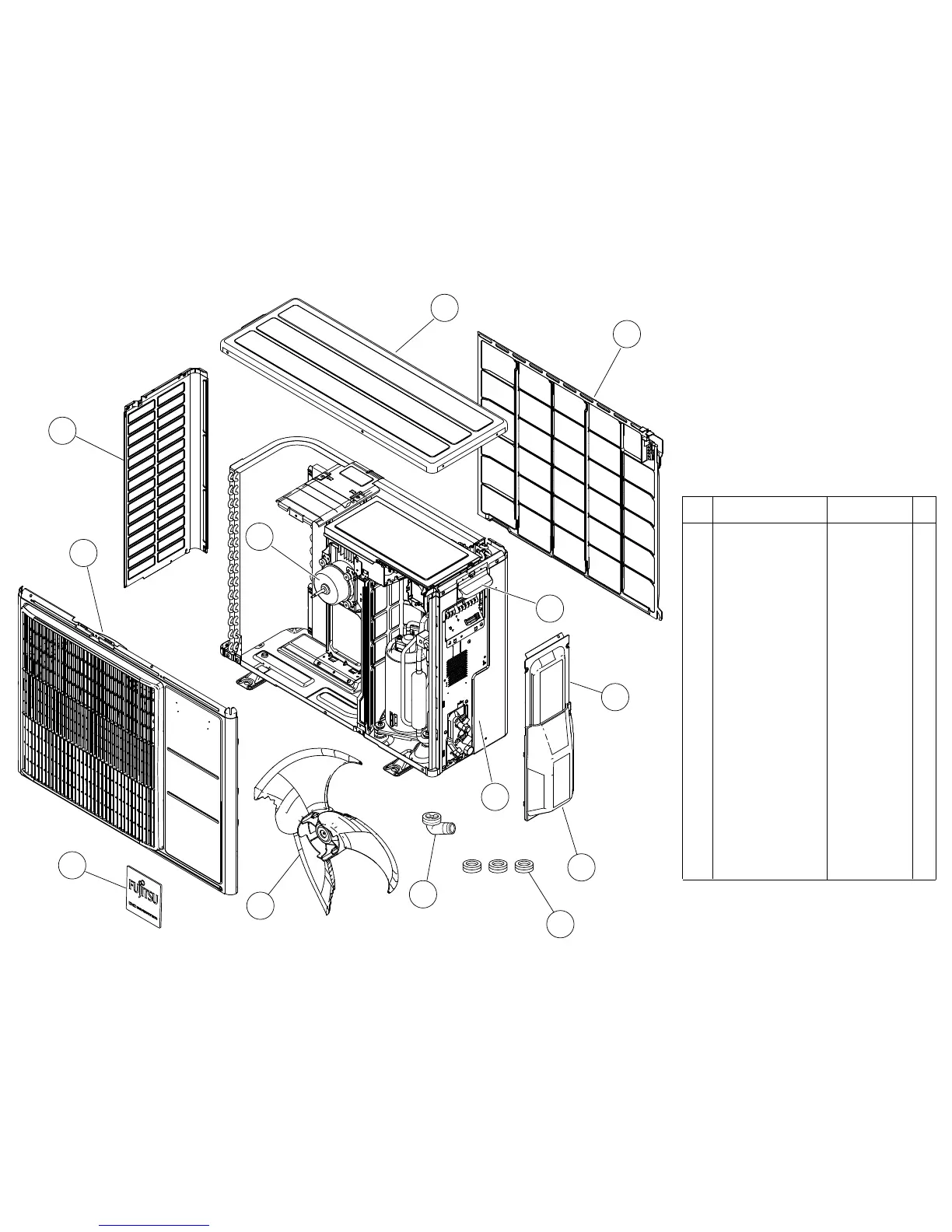

OUTDOOR UNIT
PARTS
2013.08.21 20
3 Front Panel Assy 9320114022
2 Top Panel Assy 9318464139
1 Protective Net 9331640015
5
8
Cabinet Left Assy 9318461015
4 Emblem 9319151007
13 Drain cap 313166024302
12 Drain Assy 9303029022
Switch Cover A Assy 9320402006
9 Switch Cover B 9379206013
6 Cabinet Right Assy 9318462050
11 Propeller Fan 9320027001
7 Grip 9317588003
10 Fan Motor 9602724024
Ref. Description Part number
6
8
11
4
10
7
9
5
3
2
1
12
13
