Fujitsu AOTG36LATT User Manual

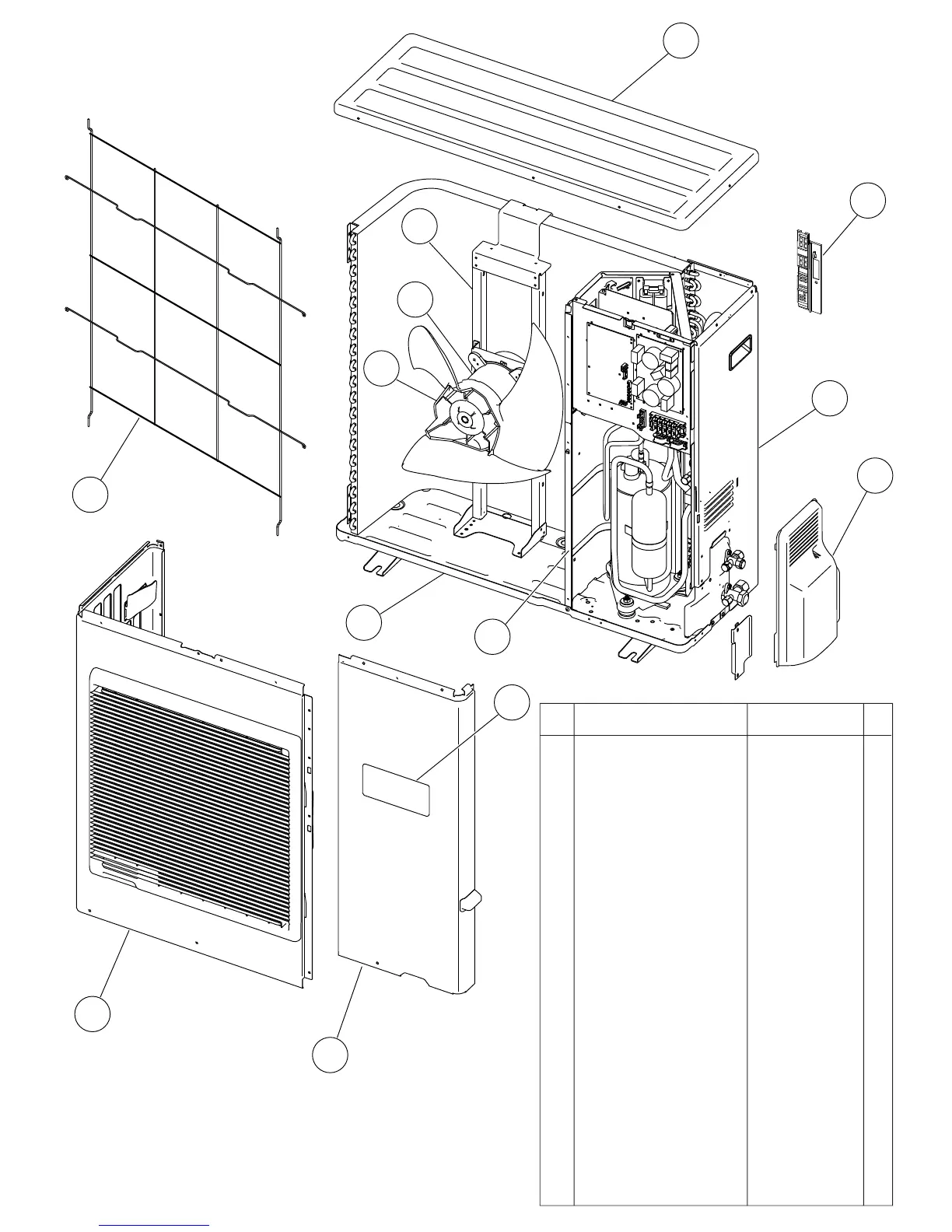

OUTDOOR UNIT
PARTS
2012.08.07 19
5
13
6
4
8
3
7
12
9
10
11
2
1
1 Top Panel Sub Assy 9374417032
2 Front Panel Sub Assy 9374414079
12 Protective Net 9375381011
13 Thermo Holder 9375211011
3 Service Panel Sub Assy 9374415052
5 Right Panel Sub Assy 9374416127
4 Emblem Rear 9351355005
6 Valve Cover 9374174010
-- Drain Cap (LFTC) 313166024302
-- Drain Assy (LFTC) 9303029015
Ref. Part numberDescription
9 Motor Bracket Sub Assy 9374418152
11 Propeller Fan Assy 9366378020
10 Fan Motor 9602843015
8 Separate Wall Sub Assy 9374413188
7 Base Assy 9374166138
