04-09

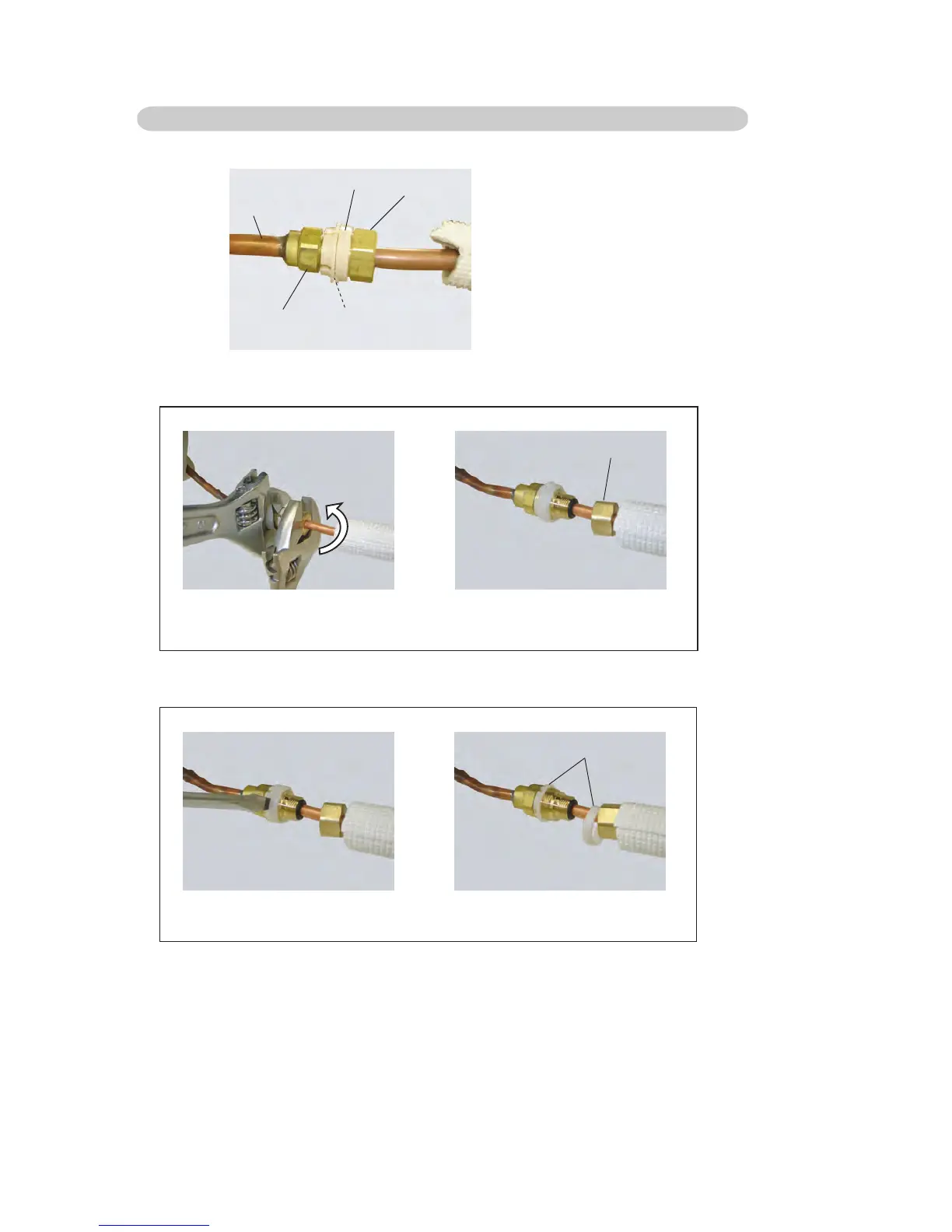

4-3-2 The method of loosening
Tightening nut
(hexagon)
Guard
Fixing nut (circular)
(Guard covers the fixing nut)
Indoor unit pipe
(Body side)
Joint (Indoor unit pipe)
Step-2. Divide the Guard.
Turn the flat screwdriver after the insertion
of the side hole to divide the Guard.
Step-1. Loosen the tightening nut with a wrench
The tightening nut hold the
body side coupling with a wrench
Loose and push aside the
tightening nut.
Push aside the divided Guard.
Tightening nut
Guard
