OUTDOOR UNIT
2012.08.07 22
61
62
63
57
55
52
54
58
53
60
51
59
56
Blue
Connector : Orange
Green
Red
CONNECTOR : RED
PRESSURE SWITCH WIRE

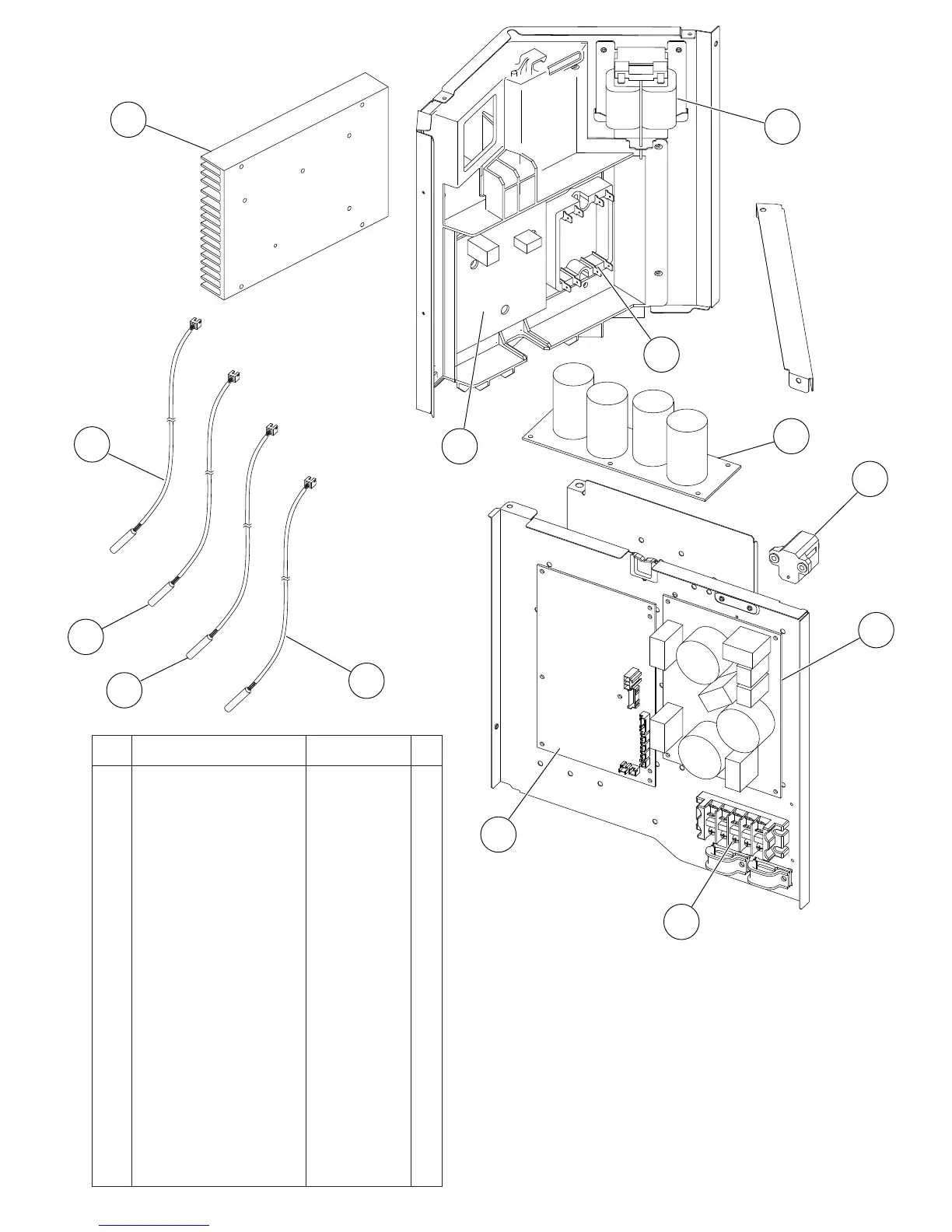

59 Heat Sink 9378530010
51 ACTPM 9703457012
52 Thermistor 9704265012
53 Main PCB 9708944036
54 Filter PCB 9707128208
55 Capacitor PCB 9707257045
56 Transistor PCB 9707669060
57 Choke Coil 9900223014
58 Terminal 9900203023
60 Discharge Thermistor 9900461003
61 Outdoor Thermistor 9900463007
62 Compressor Thermistor 9900466015
63
Heat Exchanger Thermistor
9900462000
Ref. Part numberDescription
To Next Page
