Fujitsu fi-4860C2

3-25
3.5 Cleaning the Discharge Brush
3
DAILY CARE

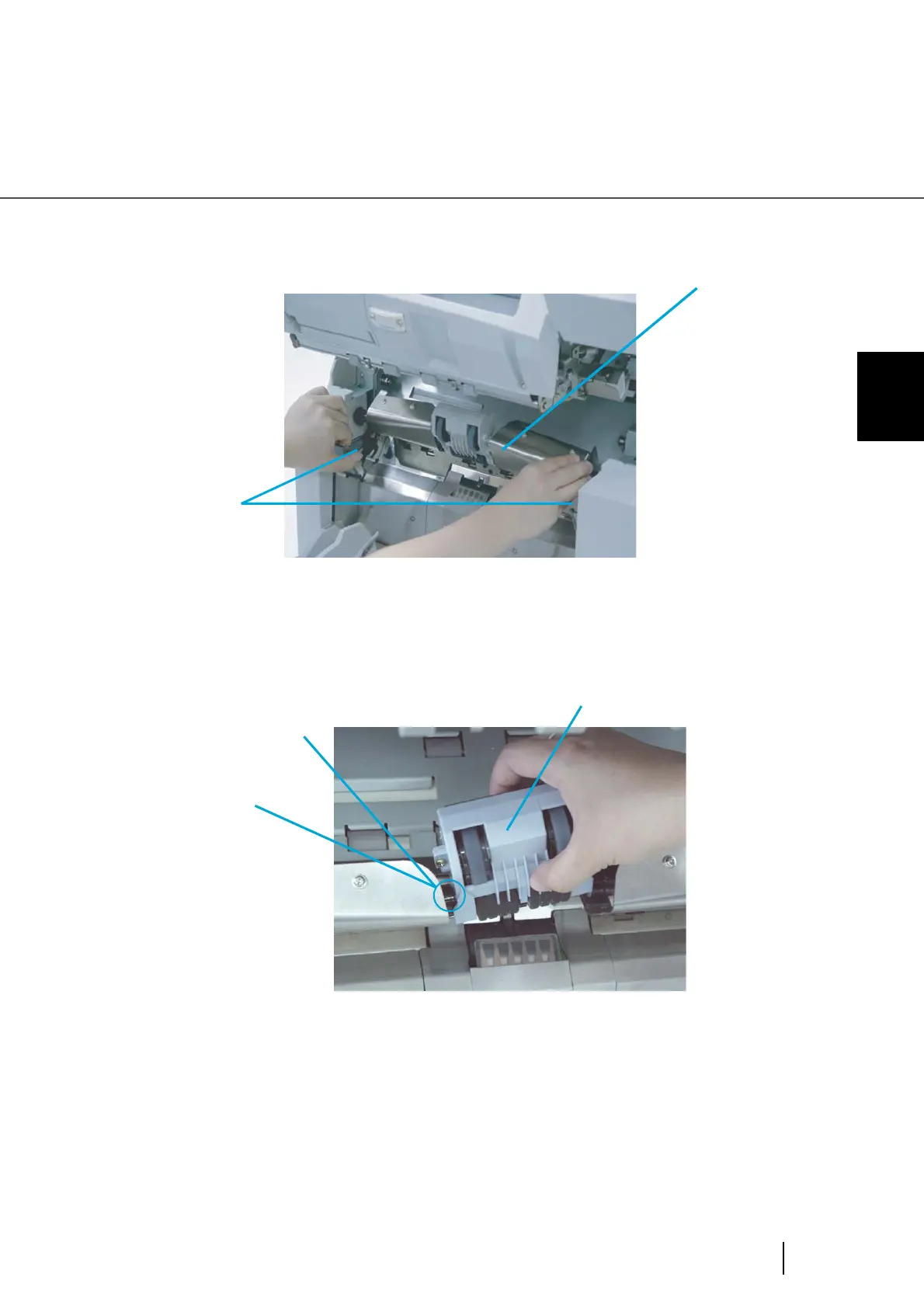

2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
3. Slide the Pick roller unit to the left to disengage the clutch ring from the
shaft.
ADF upper sheet guide
ADF release lever
Shaft
Ring
Pick roller unit
