3.5 Cleaning the Discharge Brush

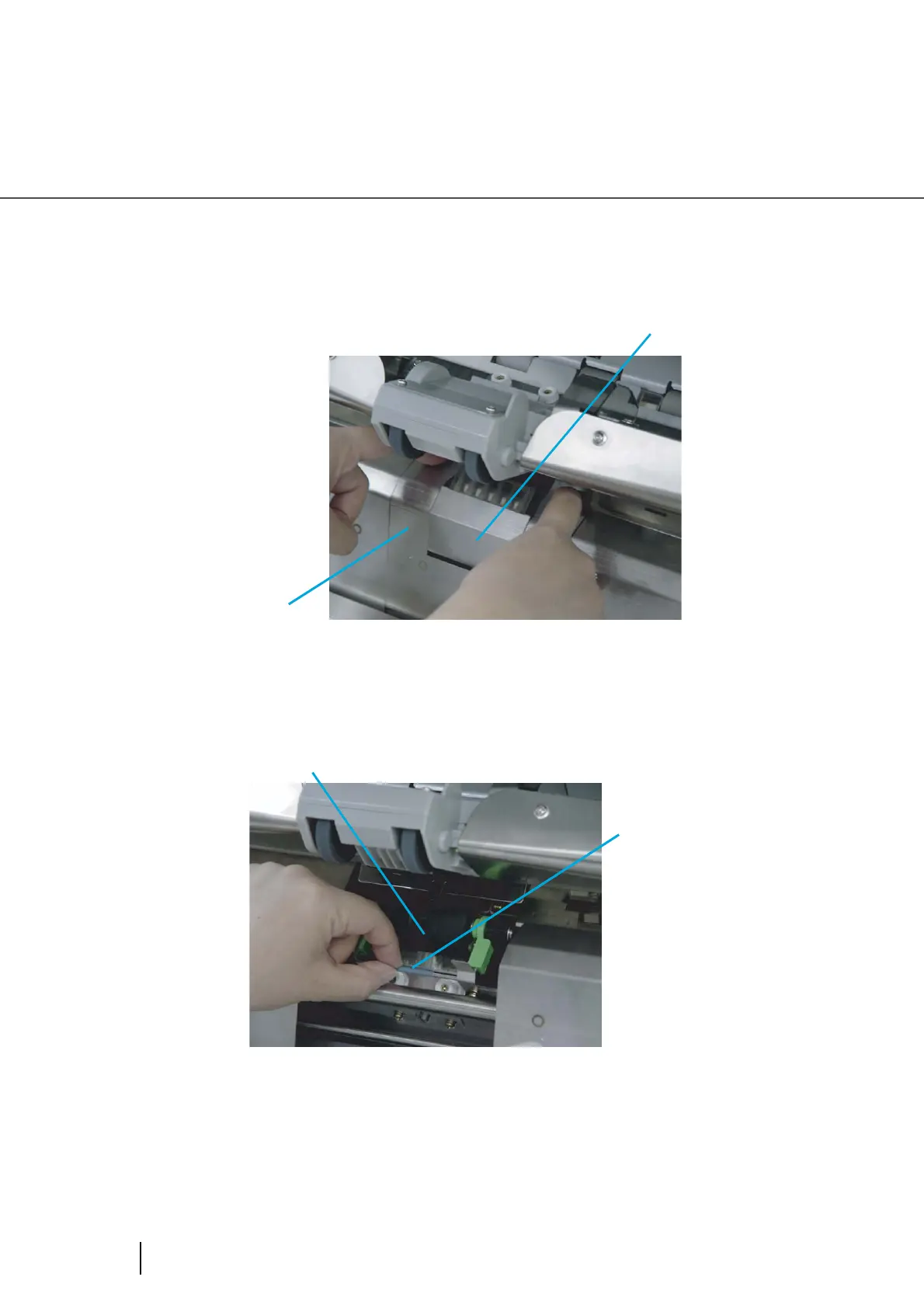

4. Pressing down on the upper part of the Guide plate with your fingers at
the two positions shown and then rotate the plate toward you to remove
it.
5. Release the lock and then hold and rotate the bail of the Pick roller unit
upward to release the lock.
Pad ASSY
Guide plate
Bail
Brake roller
