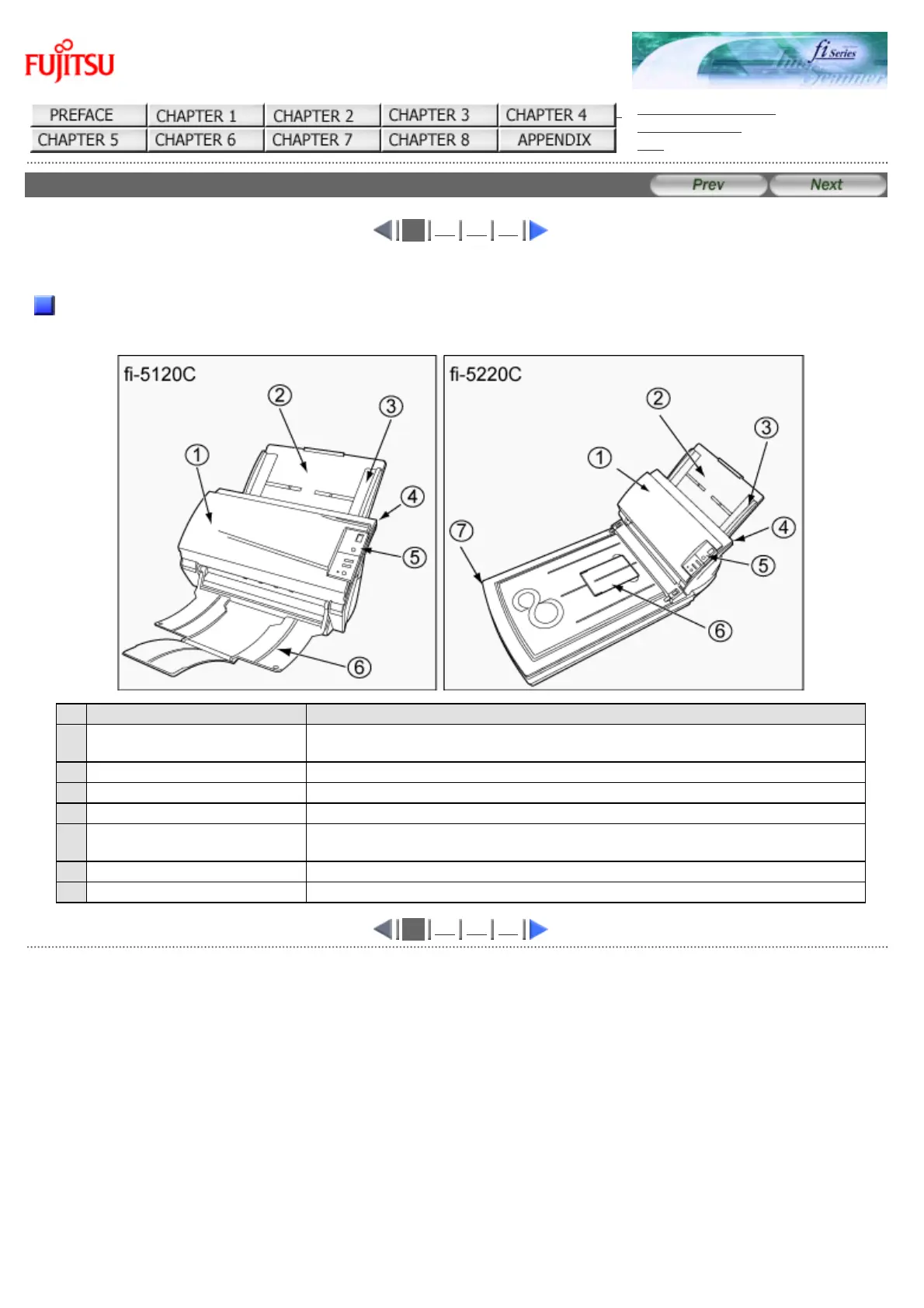

1.2 Names and Functions of Parts (1)
1
2 3 4
This section describes the scanner parts and their functions.
Front
No. Name Function
1
ADF
(Automatic Document Feeder)
It transports the document to the reading position automatically.
2
ADF paper chute Holds in place the document pages / sheets that are fed into the ADF.
3
Side Guide It is adjusted to the width of the paper in order not to scan skewed pages.
4
ADF button Puch this button to open the ADF.
5
Operator panel
This panel consists of a Function No. display, four operating push buttons
and a LED.
6
Stacker Scanned documents are ejected from the ADF onto this tray.
7
Flatbed For scanning documents not the standard sizes
1
2 3 4
All Rights Reserved Copyright 2006-2009 © PFU LIMITED

Fujitsu fi-5120C Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
Duplex Scanning	Yes
ADF Capacity	50 sheets
Interface	USB 2.0
Color Depth	24-bit
Grayscale Depth	8-bit
Ultrasonic Double Feed Detection	No
Scanning Speed	25 ppm / 50 ipm
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Scanning Method	CCD
Document Size	8.5 x 14 in (Legal)
Weight	6.4 lbs
