2.2 Loading Documents on the ADF for Scanning
(1)
1
2 3 4
1. Align the edges of the documents.
Confirm that all the documents have the same width.
Check the number of sheets in the document stack.
The standard number of sheets that can be loaded on the scanner is as follows:
(For details, see
"7.3 Maximum Document Loading Capacity")
● A4-size paper or smaller that makes a document stack of 5mm or less
● Maximum 50 sheet at A4, 20 lb, or 80 g/m
2

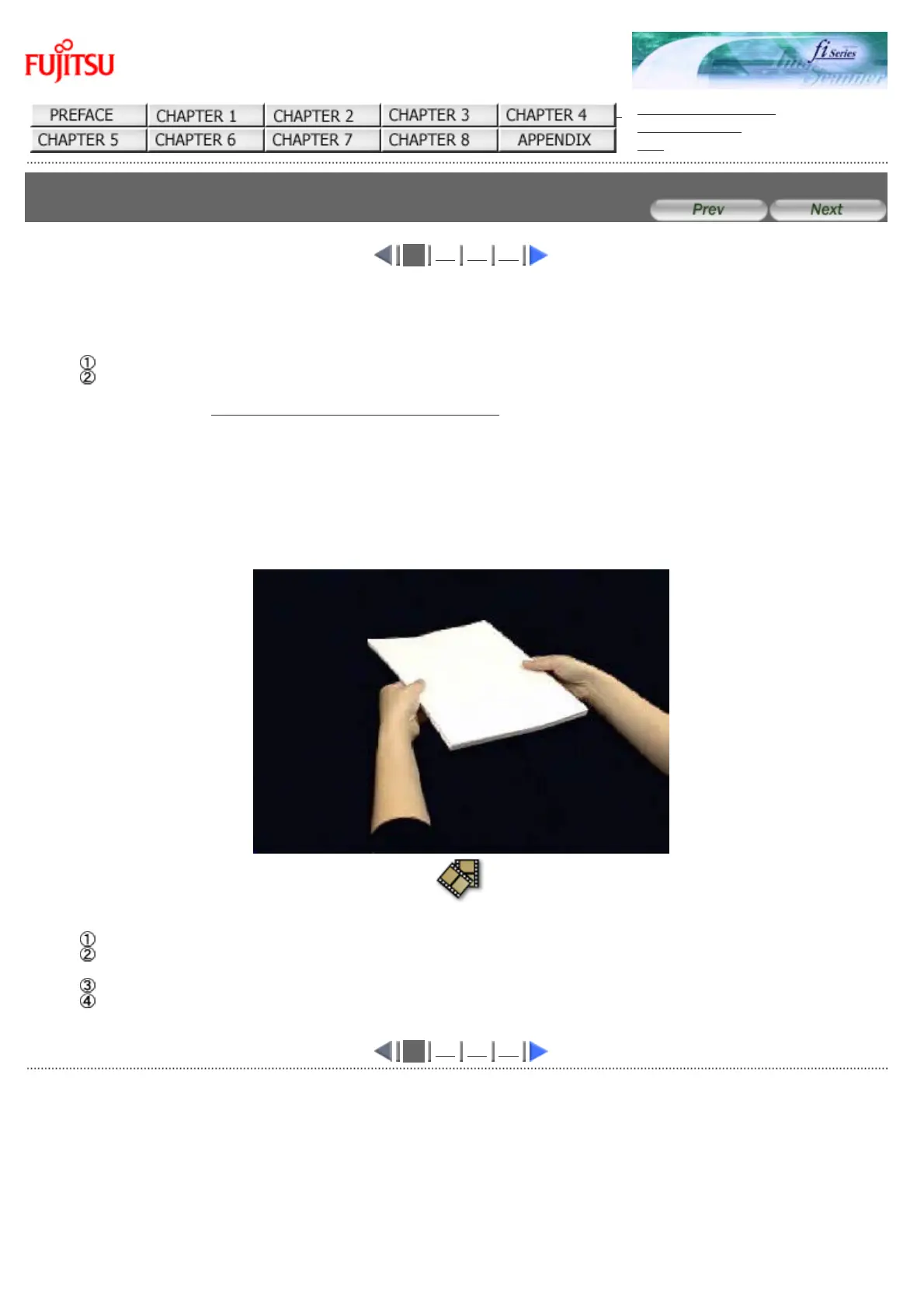

2. Fan the documents as follows:
Lightly grip both ends of the document with both hands, and bend the document as follows.
Firmly holding the document with both hands, bend back the document as follows so that the bent section rises
up in the middle of the document as follows.
Repeat steps 1) to 2) a few times.
Rotate the document 90 degrees, and fan again.
1
2 3 4
All Rights Reserved Copyright 2006-2009 © PFU LIMITED

Fujitsu fi-5120C Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
Duplex Scanning	Yes
ADF Capacity	50 sheets
Interface	USB 2.0
Color Depth	24-bit
Grayscale Depth	8-bit
Ultrasonic Double Feed Detection	No
Scanning Speed	25 ppm / 50 ipm
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Scanning Method	CCD
Document Size	8.5 x 14 in (Legal)
Weight	6.4 lbs
