4.3 Cleaning the ADF (1)
1
2 3 4
As a Guideline, clean the ADF every 1,000 scanned sheets. Note that this guideline varies according to the type of
documents you scan. For example, it may be necessary to clean the ADF more frequently if documents are scanned
when the toner is not sufficiently fixed on the printout.
CAUTION
● The glass surface of the ADF becomes hot during the operation of the scanner.
Before you start to clean the inner parts of the scanner, disconnect the AC adapter from the
power outlet, and wait at least 15 minutes to let the glass cool down.
● When you perform cleaning, make sure that the inside of the scanner is free of any foreign
object, and be careful not to get your hand or the cloth caught on the pick spring (metal part) as
a deformed pick spring (metal part) may cause injury.
Cleaning the ADF

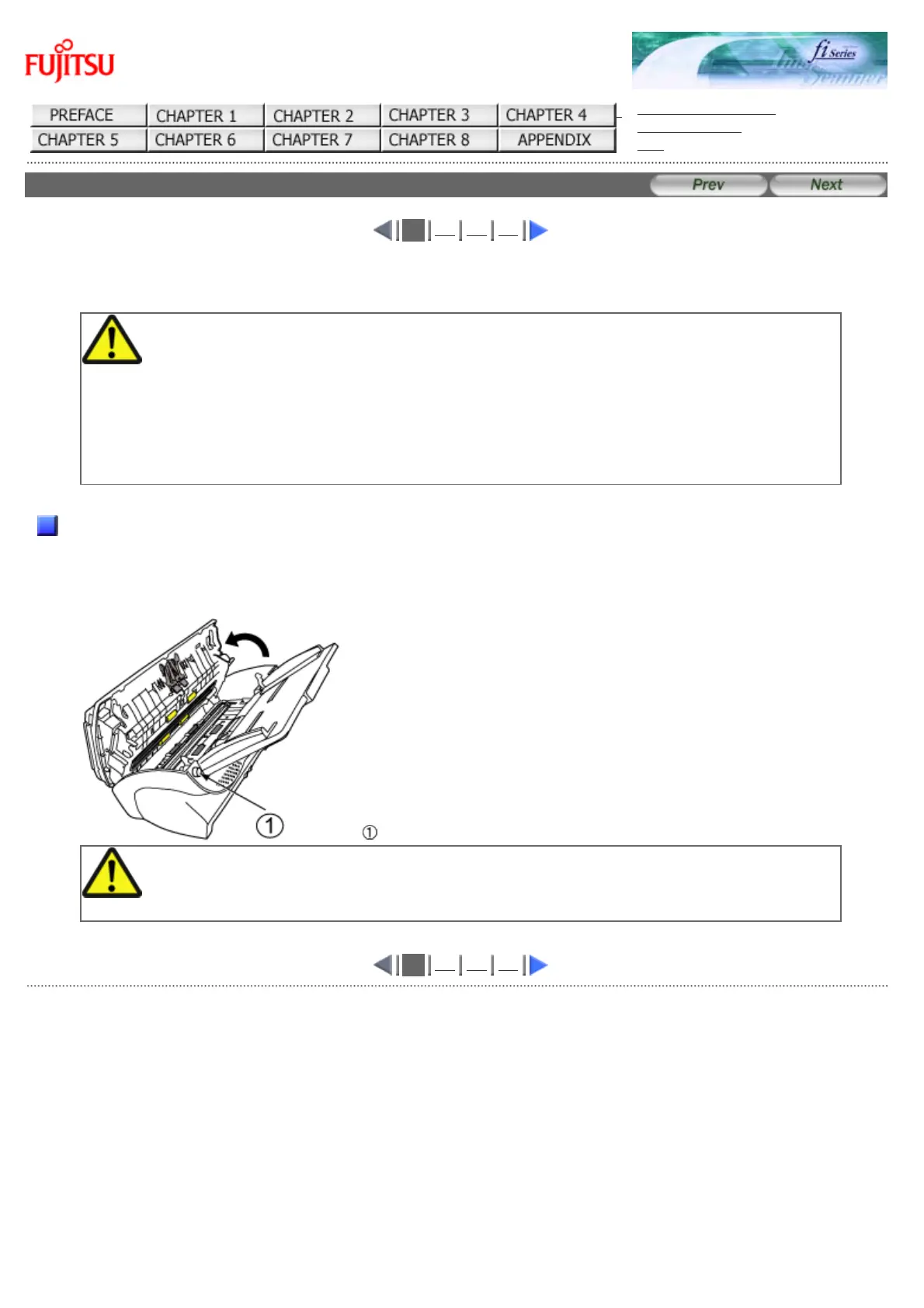

1. Open the ADF by pushing on the ADF button and turning the ADF cover to the front.
ADF button
CAUTION
Be careful, the ADF cover may close and pinch your finger.
1
2 3 4
All Rights Reserved Copyright 2006-2009 © PFU LIMITED
