fi-5120C / fi-5220C Image Scanner Operator
Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

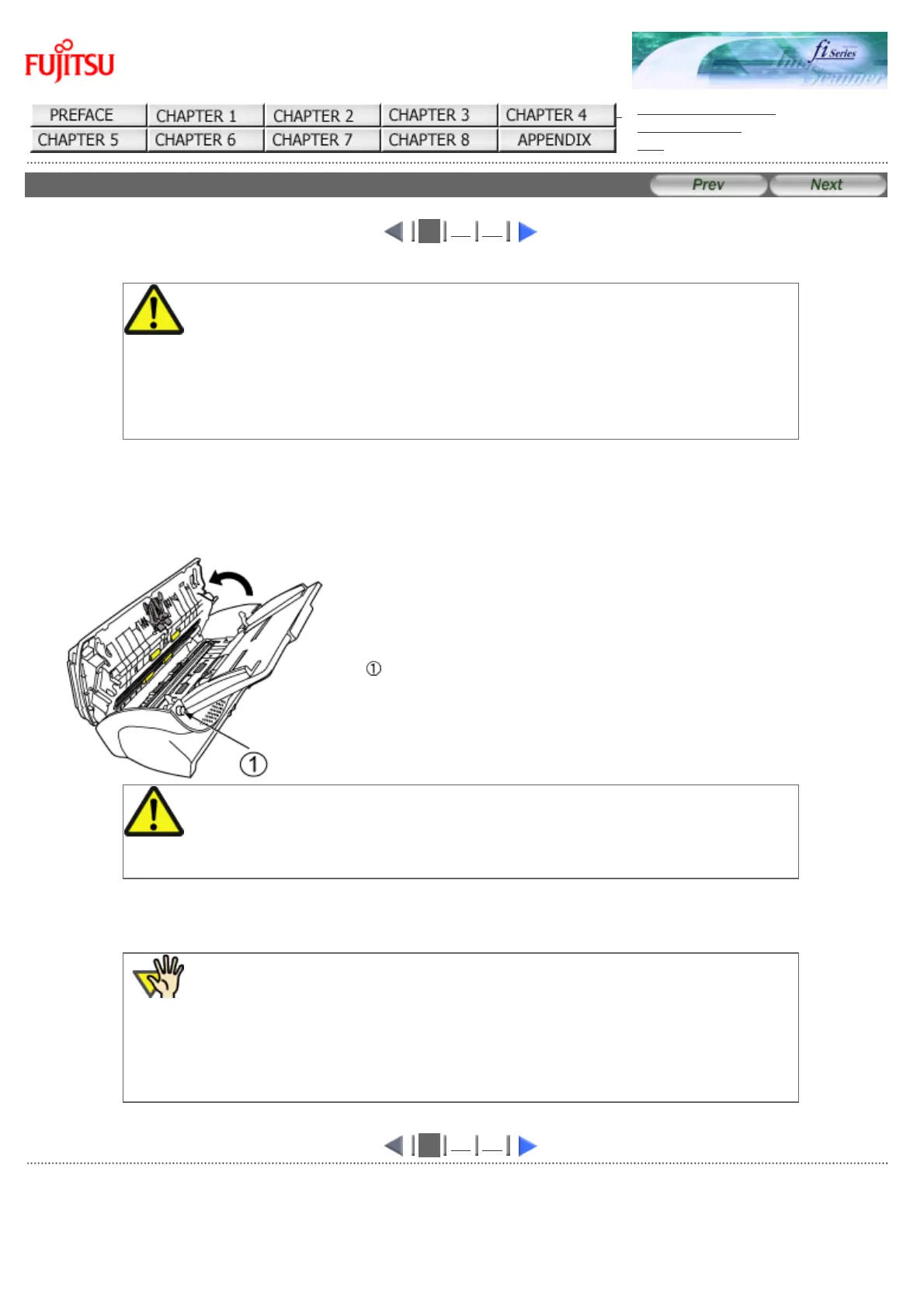

6.1 Removing Jammed Documents (1)
1
2 3
If a document jam occurred, follow the procedure below to remove the jammed documents.
CAUTION
Take care not to get injured when removing jammed documents.
Be careful not to get neckties, necklaces, etc. entangled in the scanner when
removing the jammed documents
The surface of the glass may become hot during operation. Take care not to get
burned.
1. Remove any documents on the ADF paper chute.
2. Open the ADF by pushing on the ADF button.
ADF button
CAUTION
Be careful, the ADF cover may close and pinch your finger.
3. Remove the jammed document.
ATTENTION
Staples, paper clips, etc. cause document jams. Be sure to fully check the document
and feed path, and remove any small metal objects such as these.
Also, before you start scanning, be sure to remove any staples, clips, etc. from the
document.
Take care not to pull the pick springs when removing jammed documents.
1
2 3
