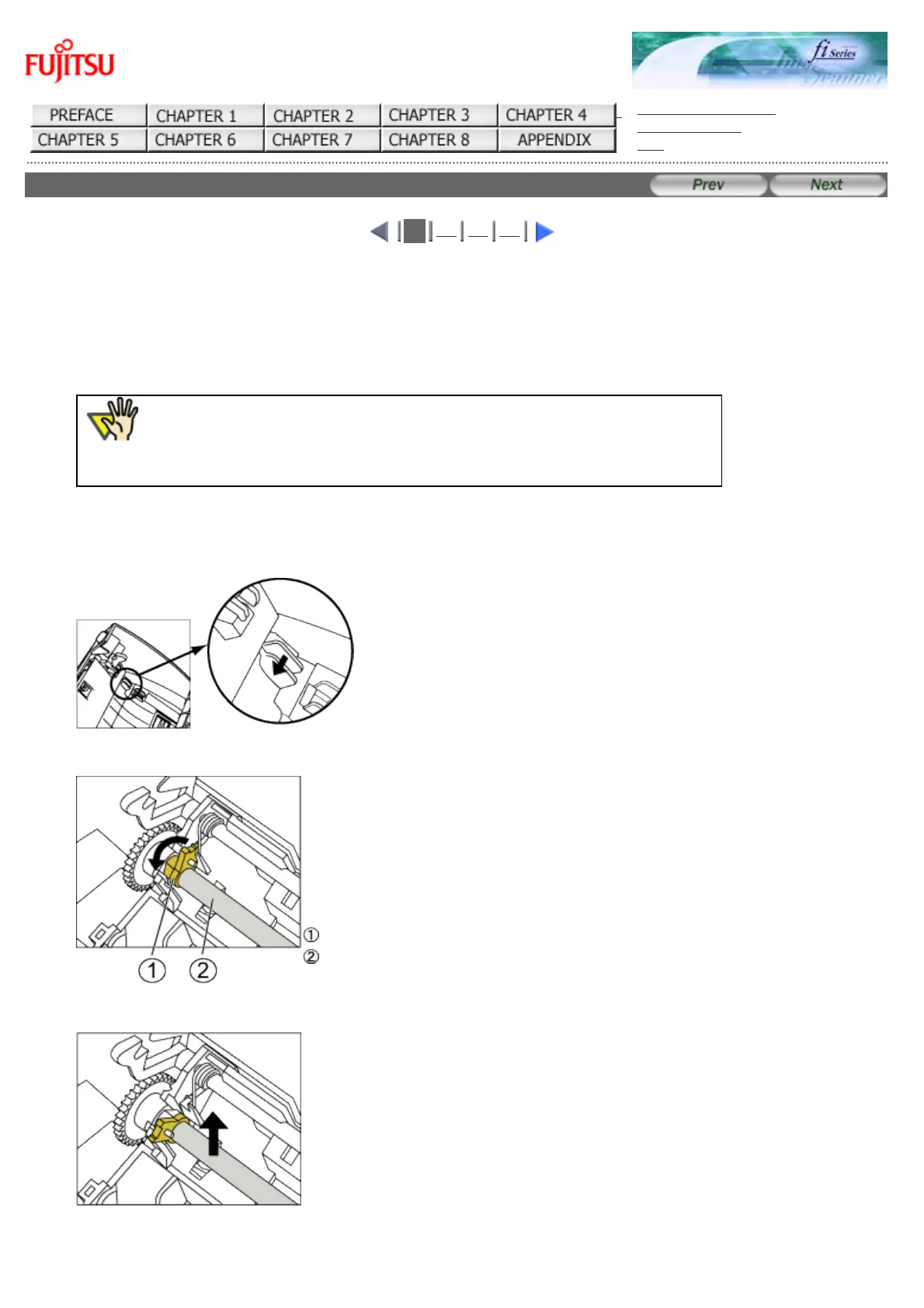

5.3 Replacing the Pick Roller (1)
1
2 3 4
1. Remove any documents on the ADF Paper Chute.
2. Remove the ADF paper chute.
3. Open the ADF by pulling the ADF Open Lever.
ATTENTION
Be careful, the ADF may close and pinch your finger.
4. Remove the Pick roller from the scanner.
1. Grip the knobs on the sheet guide with your fingers, and lift it up to remove.
2. Rotate the Pick roller bushing in the direction of the arrow.
Pick Roller Bushing
Pick Roller Shaft
3. Remove the Pick roller while lifting it up in the direction of the arrow.

Fujitsu fi-5120C Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
Duplex Scanning	Yes
ADF Capacity	50 sheets
Interface	USB 2.0
Color Depth	24-bit
Grayscale Depth	8-bit
Ultrasonic Double Feed Detection	No
Scanning Speed	25 ppm / 50 ipm
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Scanning Method	CCD
Document Size	8.5 x 14 in (Legal)
Weight	6.4 lbs
