3.7 Excluding a Color in the Image (dropout color)
A selected color (primary colors: red, green or blue) can be removed (dropped out) from the scanned image data.
For example, if the document contains black text in a green frame, you can set the scanner to read only the text
and eliminate (drop out) the green frame.To set the scanner to drop out a color, change the settings in the [TWAIN
Driver] dialogbox before scanning.

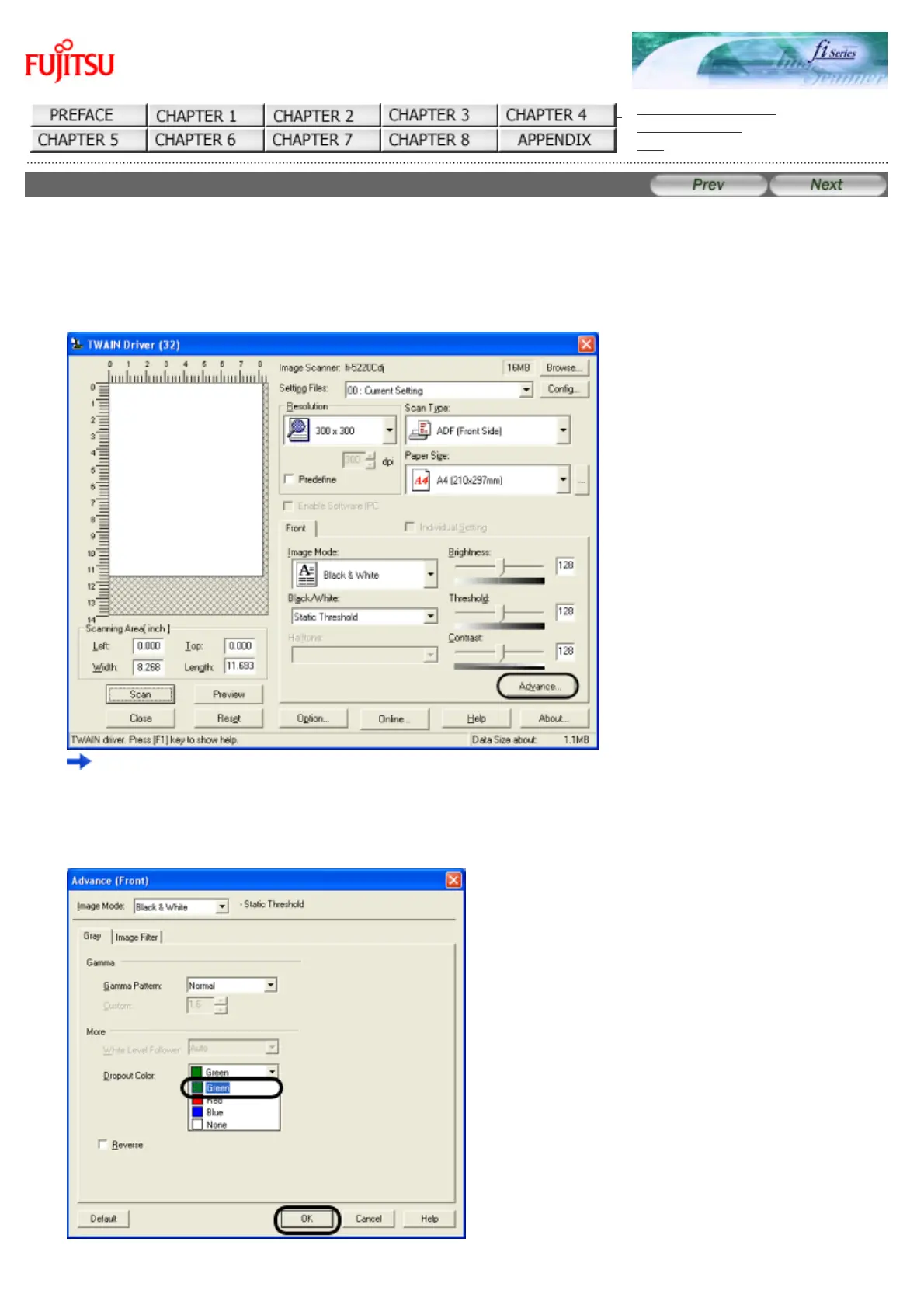

1. Click the [Advance...] button in the [TWAIN Driver] dialogbox.
The [Advance] dialogbox appears.
2. Select the color to be drop out from [Dropout Color] under "More".
For example, if the document contains black text in green frame, select [Green] so that the scanner only reads the text
and eliminates the frames. If you do not wish to have any colors dropped out select [None].
