1.4 Names and Functions of
Parts
This section describes the scanner parts and their
functions.

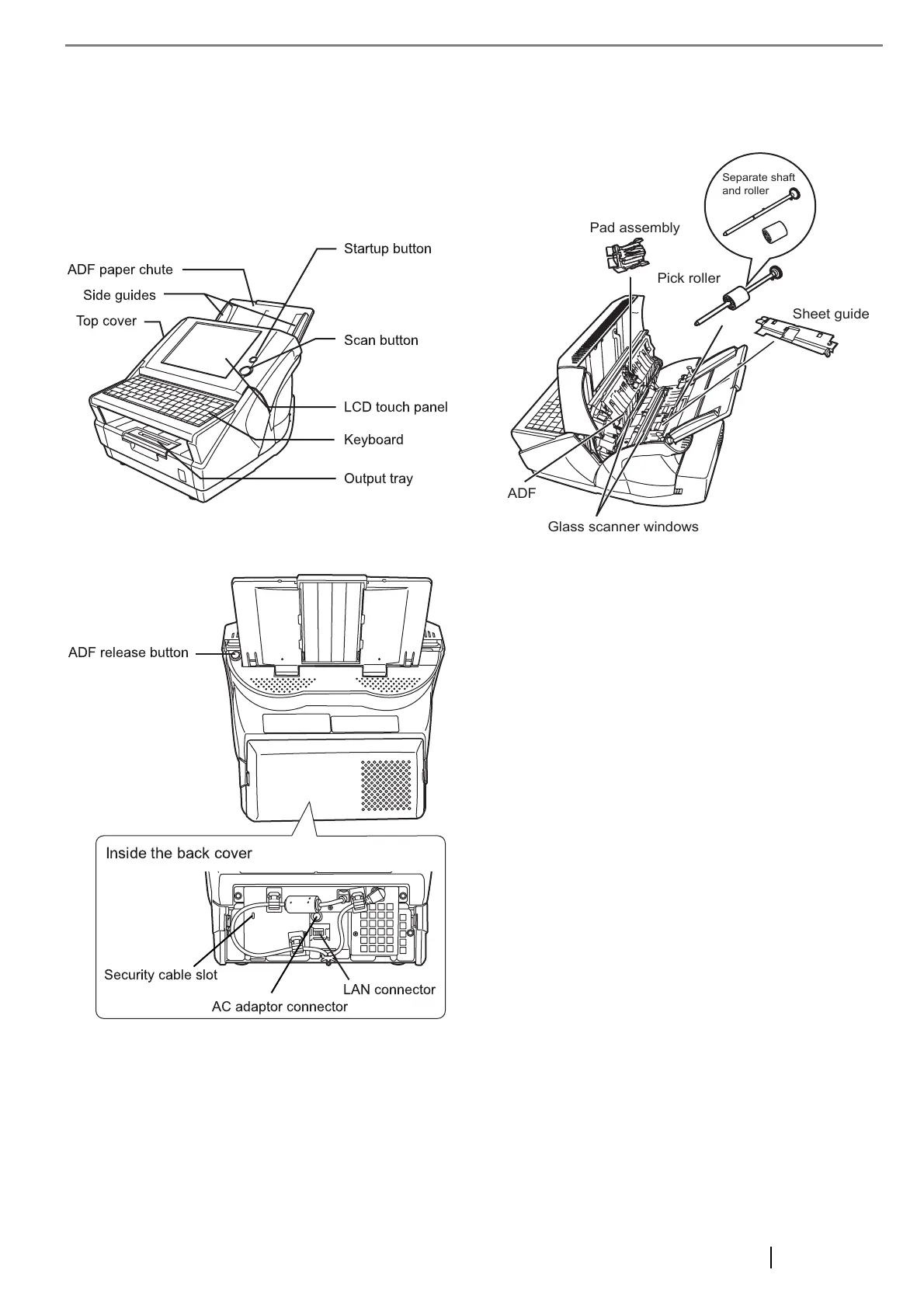

■ Front
■ Rear
■ Removable Parts
Parts that can be removed from the scanner are
displayed below.
A
DF paper chute
Side guides
Top cover
Startup button
Scan button
LCD touch panel
Output tray
Keyboard
   
 
  

  
  
Pad assembly
Pick roller
Sheet guide
Separate shaft
and roller
A
DF
Glass scanner windows
