Fujitsu FI-6000NS Getting Started Guide

4

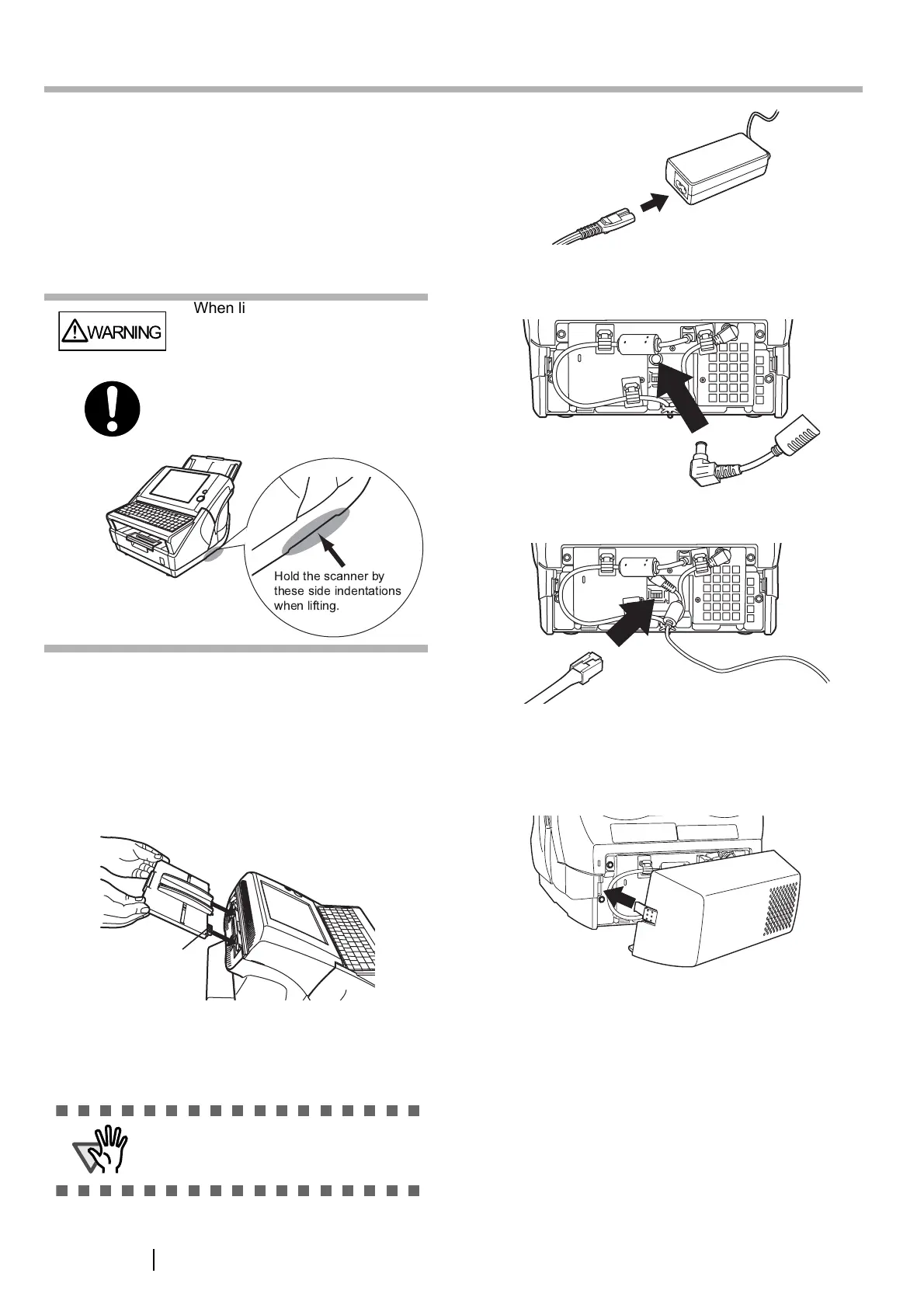

Chapter 2 Setting up the Scanner
2.1 Space Requirements
The following space is required to set up the scanner:
Depth: 700mm
Width: 400mm
Height: 500mm
2.2 Installing the Scanner
1. Place the scanner at its installation site.
2. Attach the ADF paper chute.
Hold the ADF paper chute and insert its tabs into
the corresponding slots in the scanner as shown in
the following figure.
The side guides of the ADF paper chute should
face up.
2.3 Connecting the Cables
1. Connect the AC cable to the AC adapter.
2. Connect the AC adapter connector to the
scanner's DC inlet.
3. Connect the LAN cable to the LAN connector.
4. Attach the back cover.
Attach the cover with the connected AC cable or
LAN cable protruding out of the lower part of
the cover.
5. Connect the other end of the LAN cable to the
network hub.
6. Insert the AC cable into a power outlet.
⇒ The power is connected but the scanner is not
yet ready for operation.
Continue setting up the network.
WARNING
When lifting the scanner, always
hold it by the indentations on the
bottom of each side to ensure a
stable grip.
Holding the scanner in any other
way may cause it to be dropped
or damaged.
ATTENTION
Use only the AC adapter provided by the
manufacturer.
   
  
 
Tab

Fujitsu FI-6000NS Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Display	TFT
Scanner type	Flatbed & ADF scanner
Product color	Gray
Display diagonal	8.4 \
Display resolution	1024 x 768 pixels
Scan to	E-mail, Image
Sensor type	CCD
Scan file formats	JPG, PDF, TIFF
Scanning noise level	59 dB
Daily duty cycle (max)	- pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	53 x 74 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 127 g/m²
Standard interfaces	Ethernet, SCSI-3
Server operating systems supported	Windows 2000 Server, Windows Server 2003
Input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	10 W
Power consumption (typical)	88 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS
Cabling technology	10/100BASE-T(X)
Dimensions (WxDxH)	315 x 415 x 281 mm
Networking features	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, SMTP, SMB, LDAP, NTP

Weight and Dimensions

Depth	415 mm
Width	315 mm
Height	281 mm
Weight	13000 g
