Fujitsu MCE3064SS - Mounting Requirements; External Dimensions

C156-E097-01EN 3 - 5
3.2 Mounting Requirements
3.2.1 External dimensions

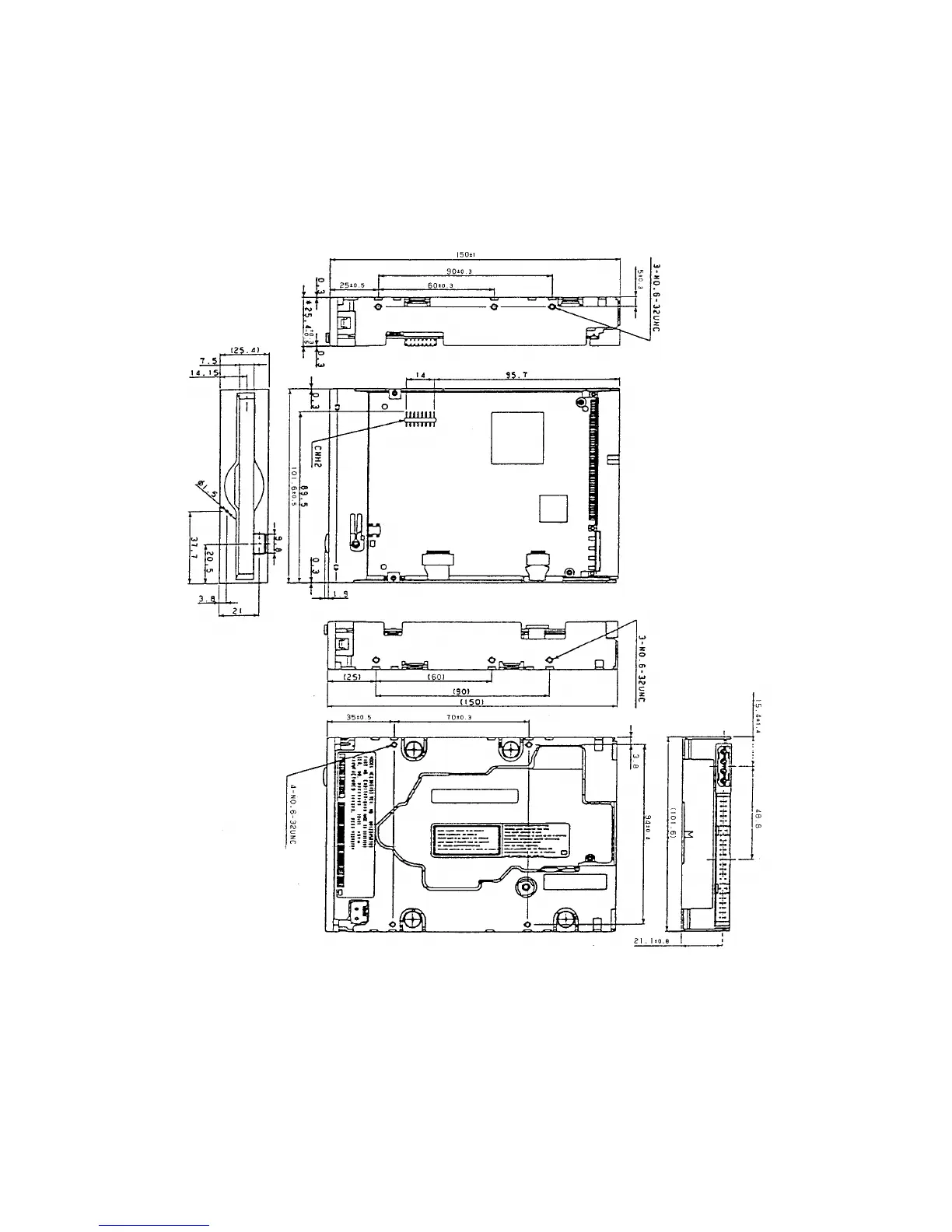

Figures 3.2 to 3.3 show the dimensions of the drive and the positions of the mounting holes.
Unit: mm
Note: The height length is 25.4 ± 0.8 besides the panel size.
Figure 3.2 Dimensions
