C156-E097-01EN 3 - 21
(a) Connection to a point along the cable
Link
connector
Link
connector
SCSI
cable
SCSI
cable

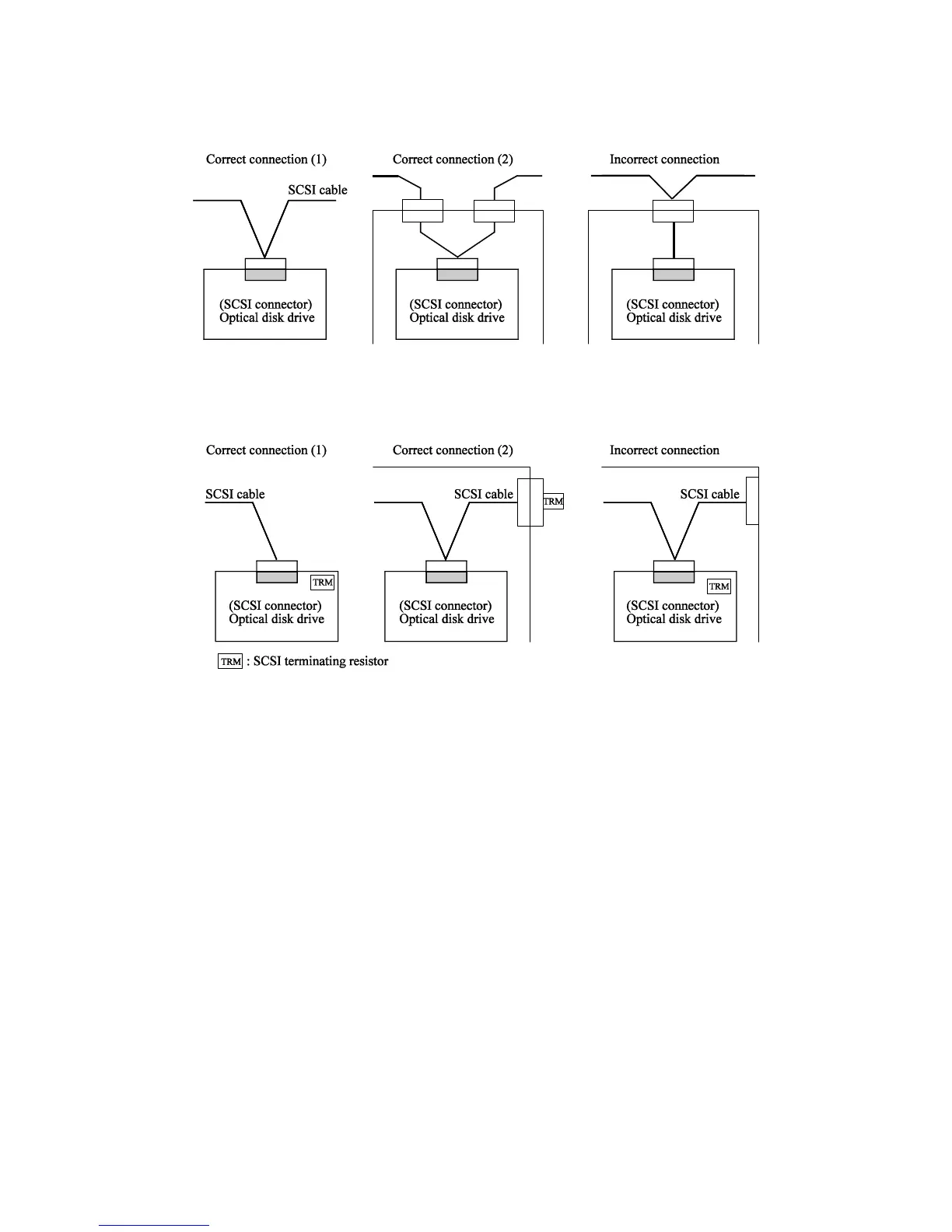

Figure 3.18 SCSI cable connection
(b) Connection to a point along the cable
