C156-E097-01EN 3 - 17
For cables using pin 01 as shield ground, note that the shield of the
connector on the drive is not connected to ground.
3.4.2 Cable connection requirements

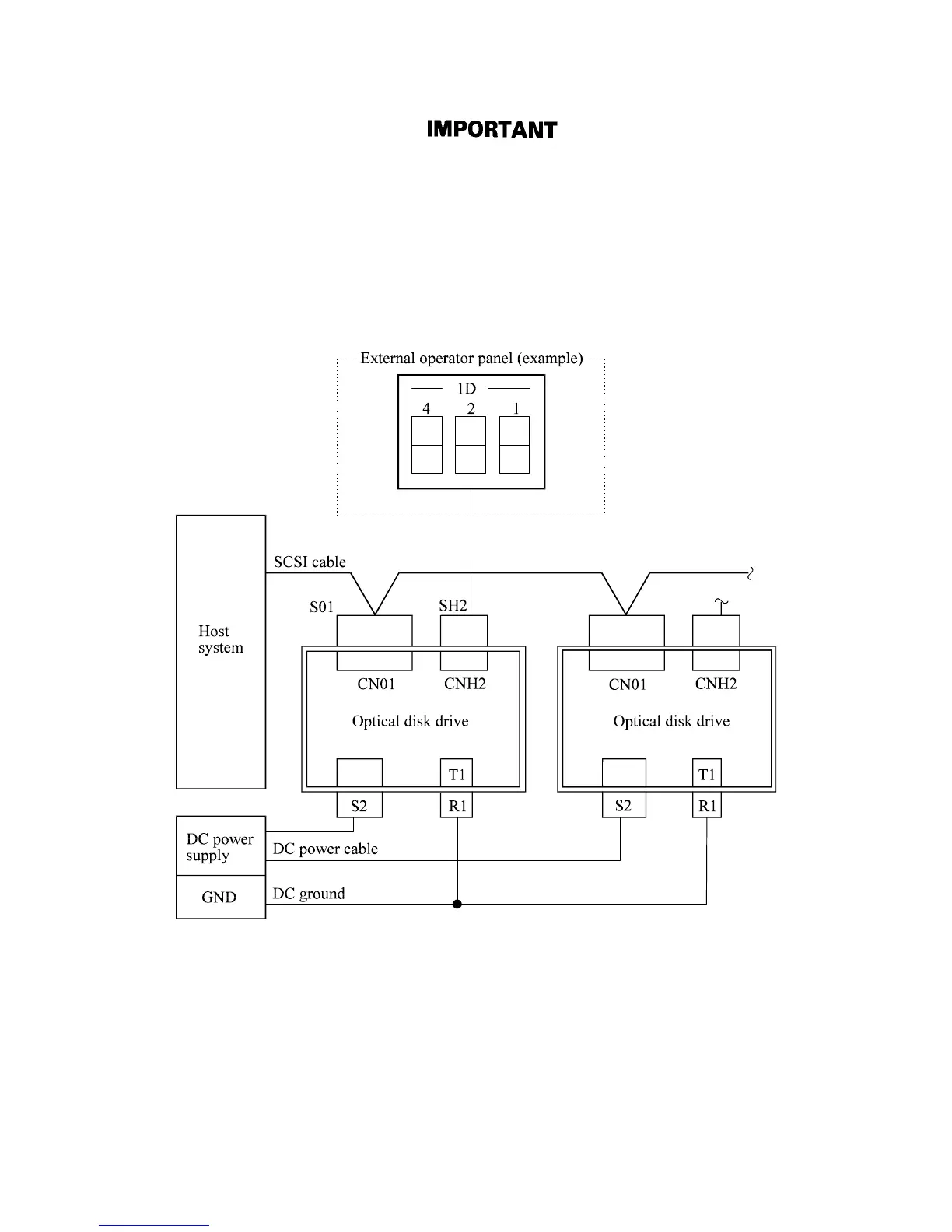

Figure 3.16 shows the cable connection mode between the drive, host system, and power supply
unit. Table 3.4 lists recommended components for the connection.
Figure 3.16 Cable connection mode
CN01CN01
