4.3.1 Setting switches (SW1)

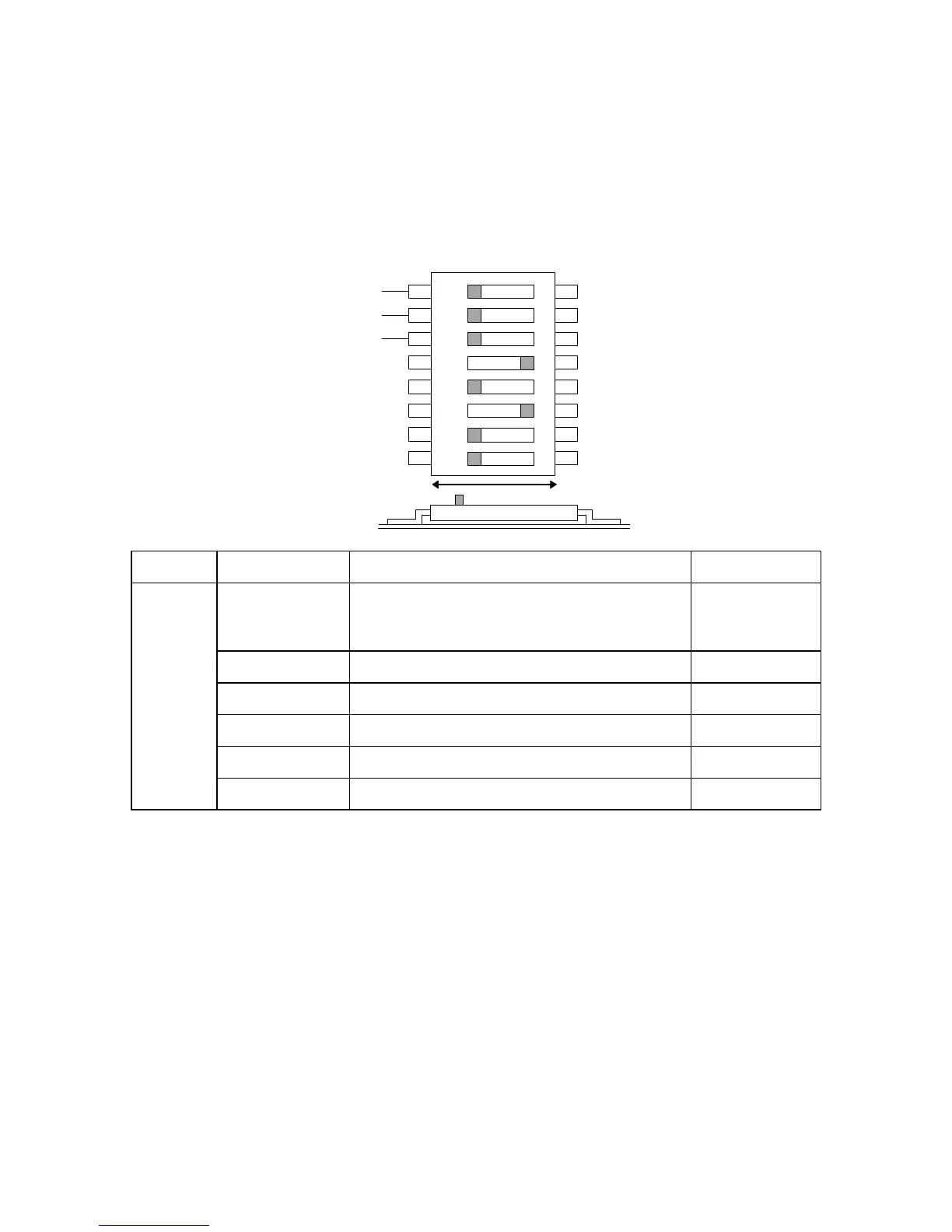

Figure 4.4 shows the types of switches and their settings when the drive was shipped.
Board
Setting
switch
8
7
6
5
4
3
2
1
SCSI ID
SCSI ID
SCSI ID OFF
• SW1
Switch number Signal name At shipment
SW1 01
02
03
SCSI ID OFF
OFF
OFF
04 SCSI data bus parity check ON
05 Write cache mode OFF
06 Device type mode ON
07 Spindle automatic stop mode OFF
08 Factory test mode (user setting inhibited) OFF
Figure 4.4 Setting switch (SW1)
