3.2.2 Installation direction
Figure 3.4 shows the permissable installation directions for this drive. The mounting angle
tolerance must be within –5° to 10° from the horizontal. (–) shows that the insertion faces below.

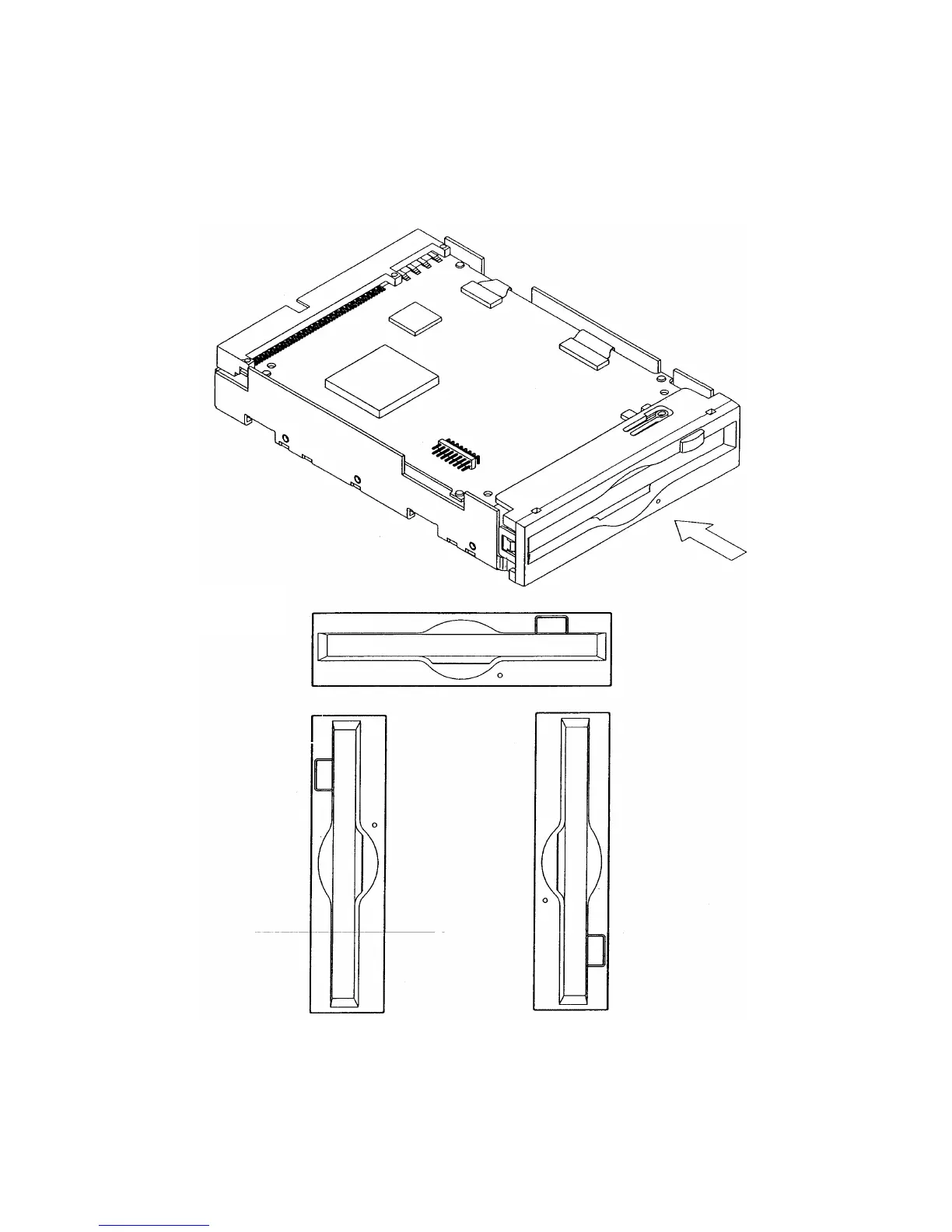

Figure 3.4 Installation directions
• Vertical
(Two orientations)
• Horizontal
