Fujitsu MCE3064SS - Positions of Setting Terminals and Switches

4 - 6 C156-E097-01EN
CNH1
CNH2
01
Front
(Mounting area)
SW1
050301
01
060402
SCSI
connec-
tor
01
50
04
01
Power
connec-
tor

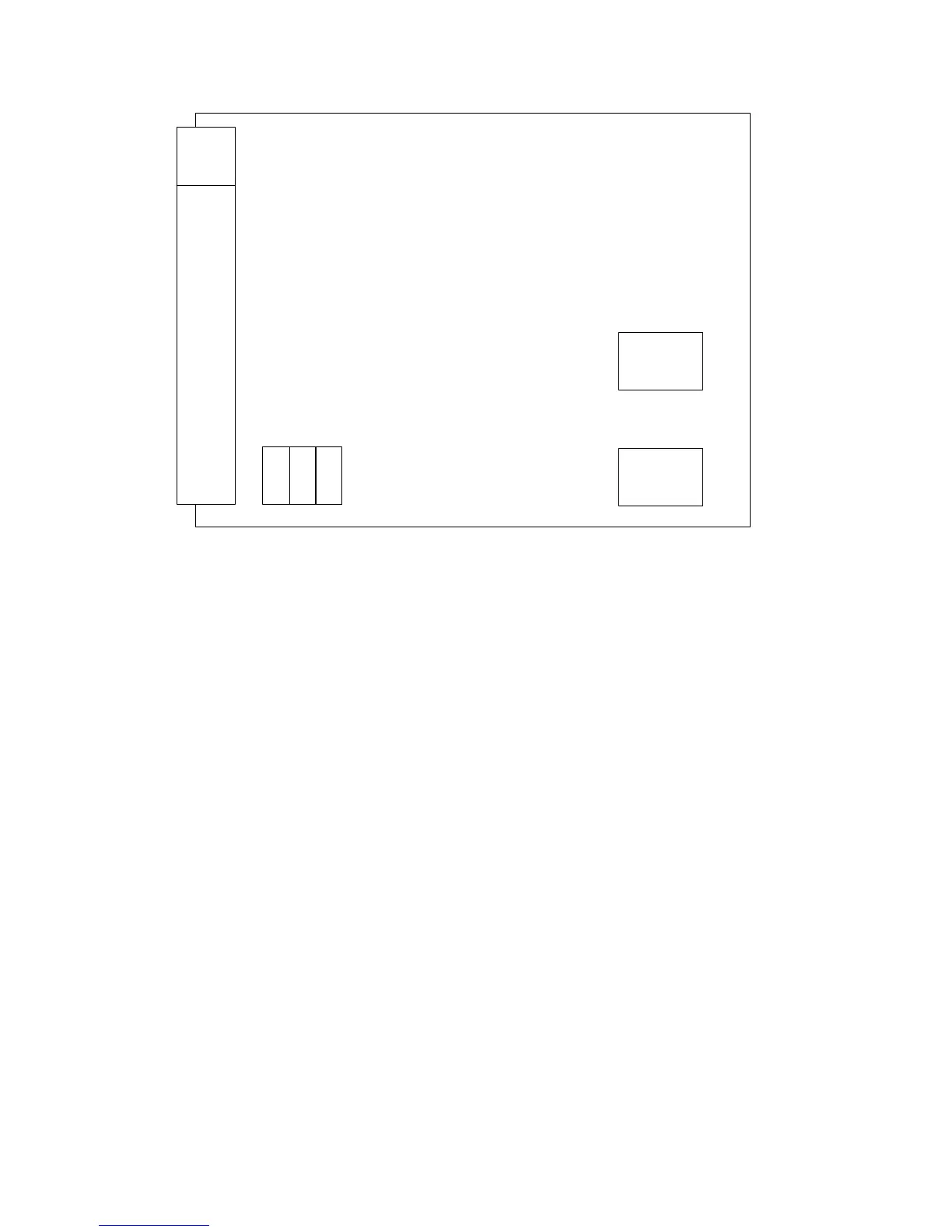

Figure 4.3 Positions of setting terminals and switches
Setting items are as follows:
• SW1
• SCSI ID
• SCSI data bus parity check
• Write cache mode
• Device type mode
• Spindle automatic stop mode
• Factory test mode (user setting inhibited)
• CNH1
• SCSI terminating resistor power supply
• SCSI terminating resistor
• CNH2
• SCSI ID
• Device type mode
• SCAM mode
• Verify mode
• Macintosh mode
• SCSI type
• SCSI connector
• SCSI signal
• Power connector
• +5VDC
• GND
