CX400 M4 Disassembly and Recycling Instructions 11
Disassembly and recycling

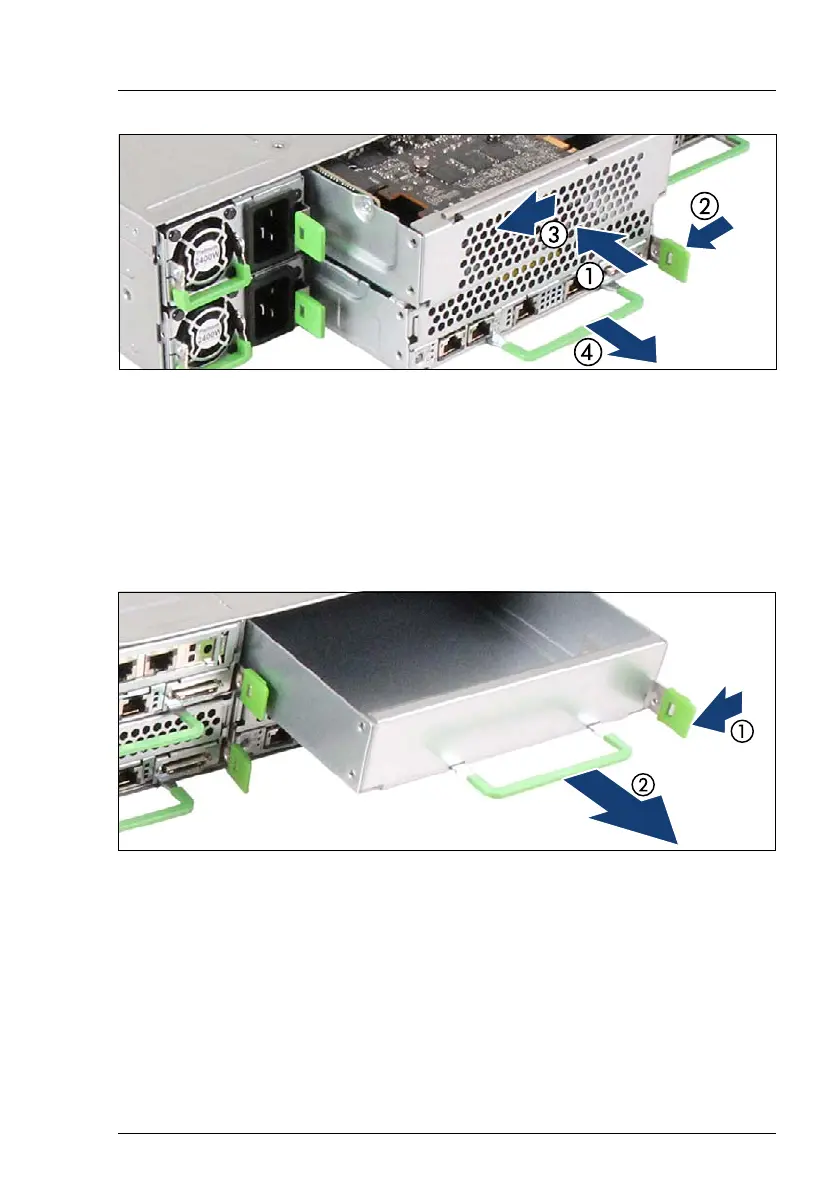

Figure 3: Removing the CX2570 M4/M5 server node (B)
V CAUTION
If the server node is difficult to pull out of the bay, push the server node
(1), and then pull the server node (4) while pushing the server node to
the left side (2, 3).
Removing server node dummy modules
Figure 4: Removing the server node dummy module
Ê Undo the locking mechanism (1) of the release lever and pull the server
node dummy module out of the bay (2).
Ê Disassembly the server nodes as described in section "Disassembly of the
server nodes" on page 30.
