CX400 M4 Disassembly and Recycling Instructions 51
Disassembly and recycling
Removing a slot cover from the riser module

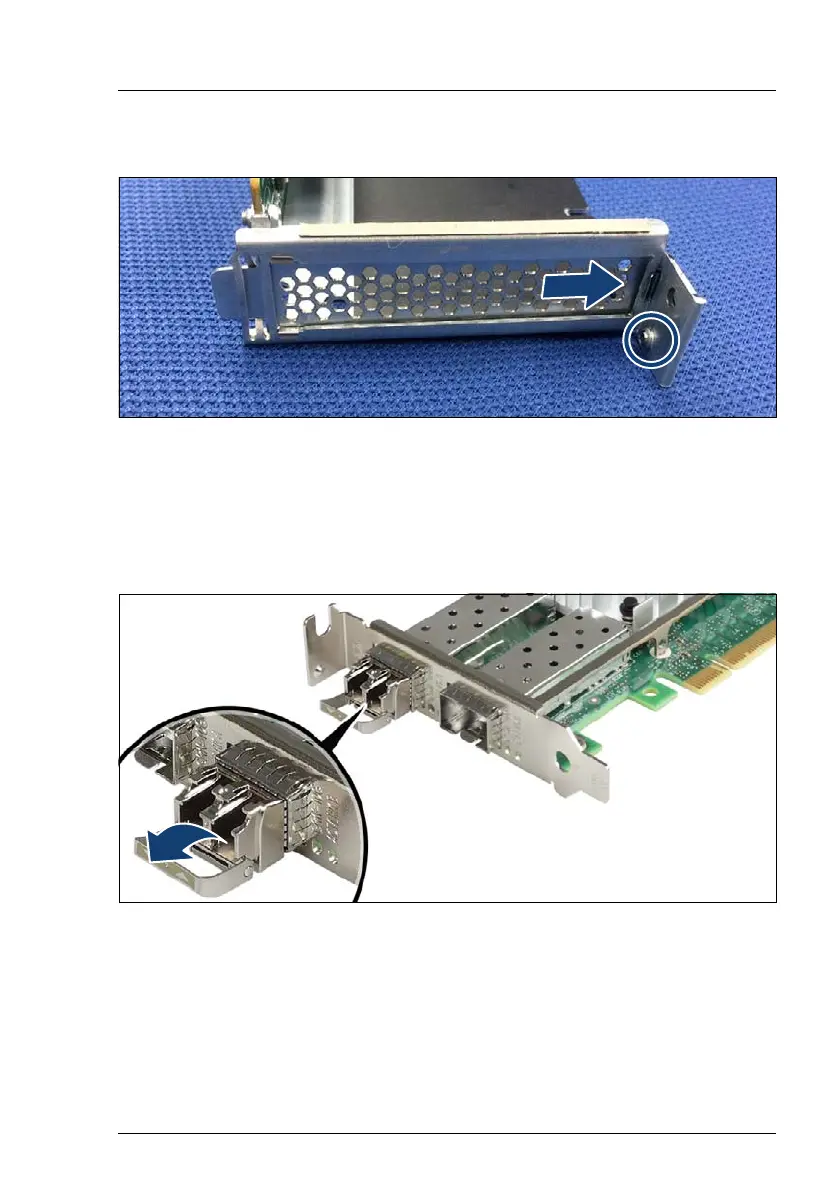

Figure 60: Removing the slot cover from the riser module
Ê Remove the screw from the riser module (see circle).
Ê Pull the slot cover from the riser module (see arrow).
Removing SFP+ transceiver modules
Figure 61: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
