CX400 M4 Disassembly and Recycling Instructions 53
Disassembly and recycling
Removing the TFM

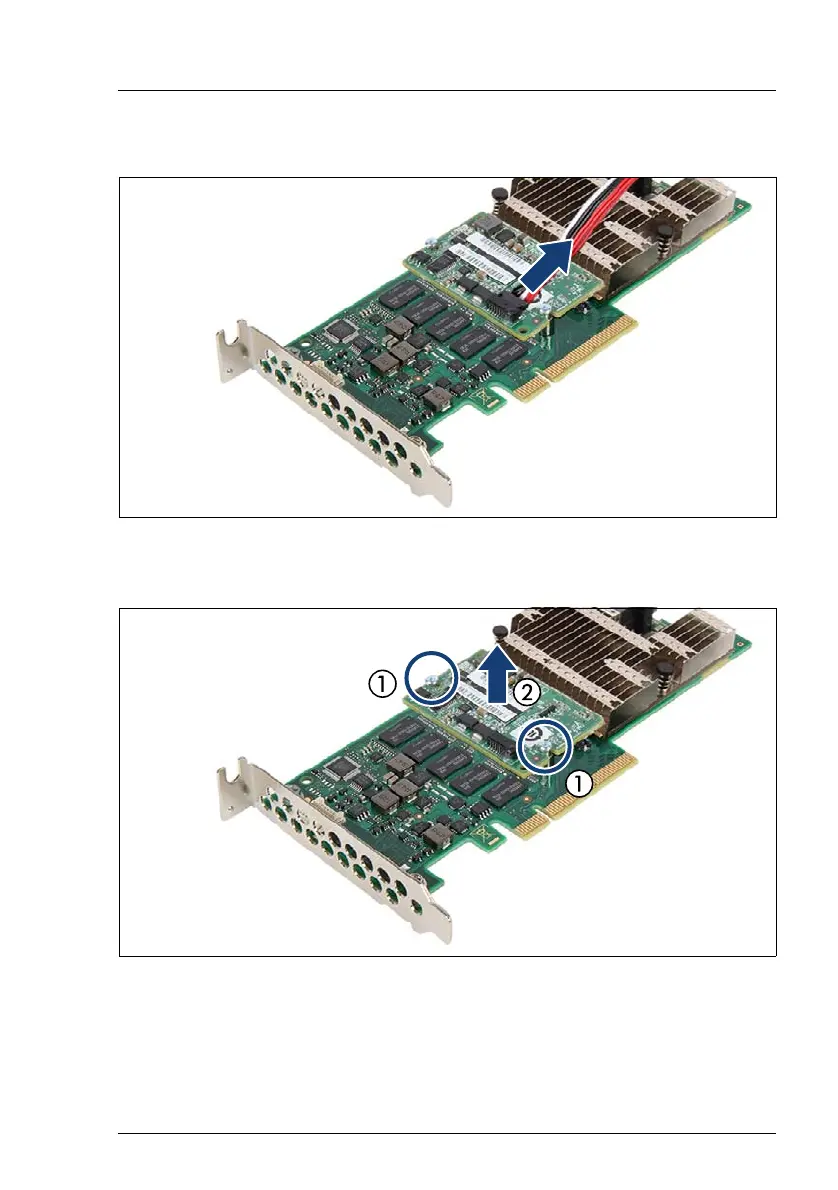

Figure 64: Disconnecting the FBU cable from the TFM
Ê Disconnect the FBU cable from the TFM.
Figure 65: Removing the TFM
Ê Remove the two screws (1).
Ê Remove the TFM (2).
Ê Remove the two spacer bolts.
