64 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Removing the flexible tubes (CX2550 M5)

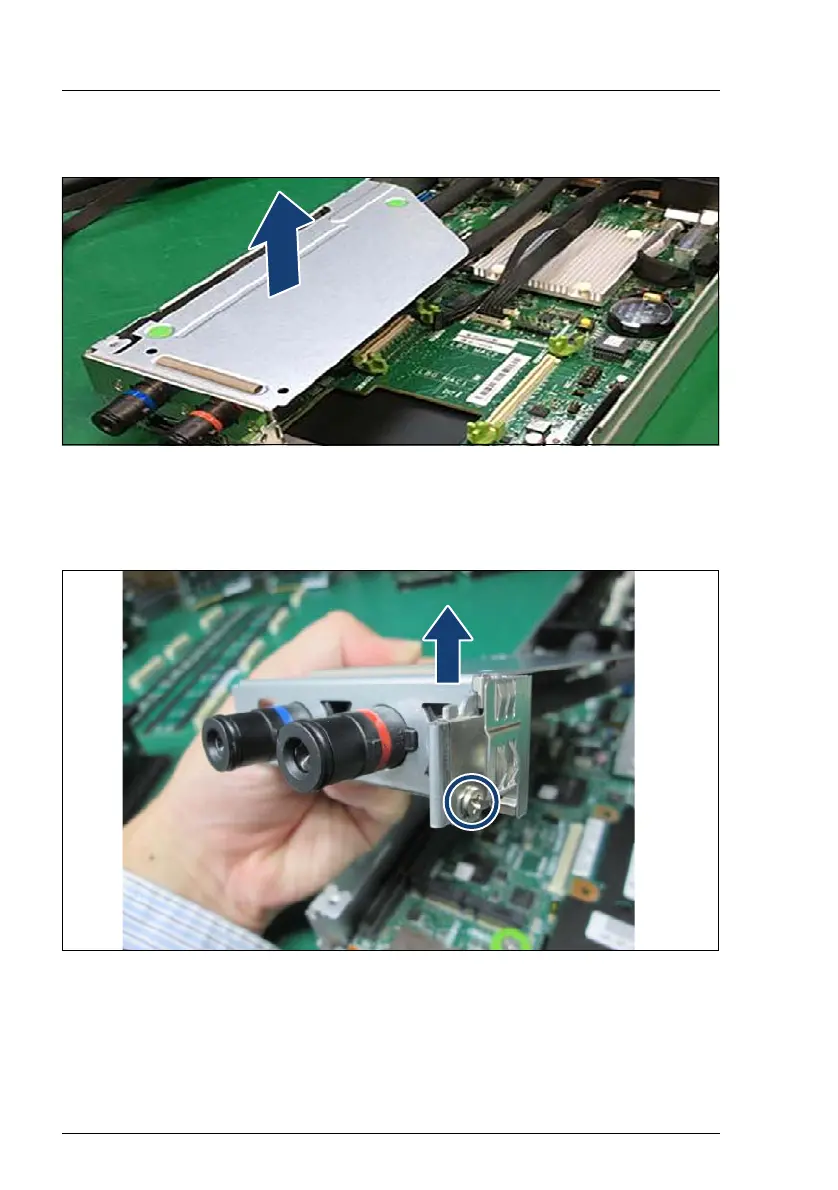

Figure 82: Removing the LC flexible tubes riser
Ê Remove the LC flexible tubes riser from the tray.
Ê Pull both flexible tubes from the riser.
Figure 83: Removing the EMI gasket from the LC bracket
Ê Remove the M3 screw from the LC bracket and then remove the EMI gasket
from the LC bracket (see arrow).
