CX400 M4 Disassembly and Recycling Instructions 65
Disassembly and recycling

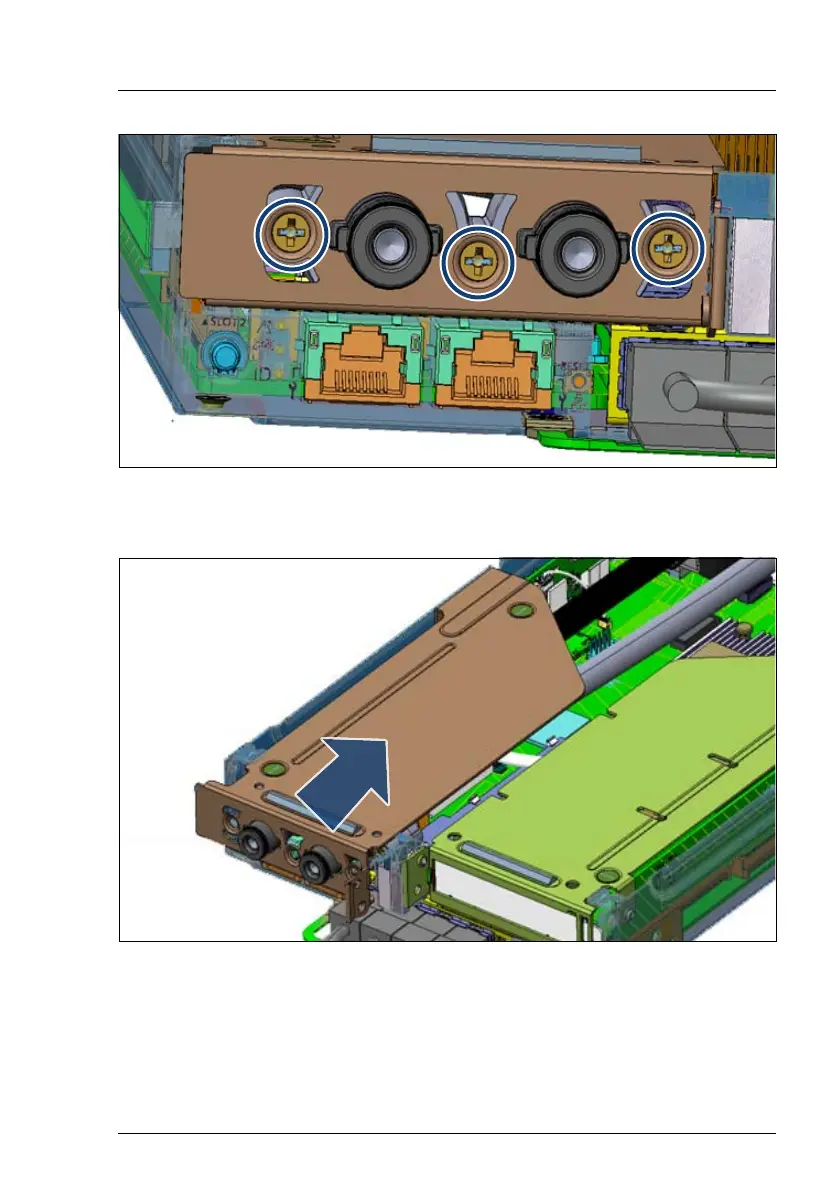

Figure 84: Loosening the LC bracket
Ê Loosen the three screws (see circles) of the LC bracket.
Figure 85: Removing the LC flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
