66 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Removing the flexible tubes (CX2570 M5)

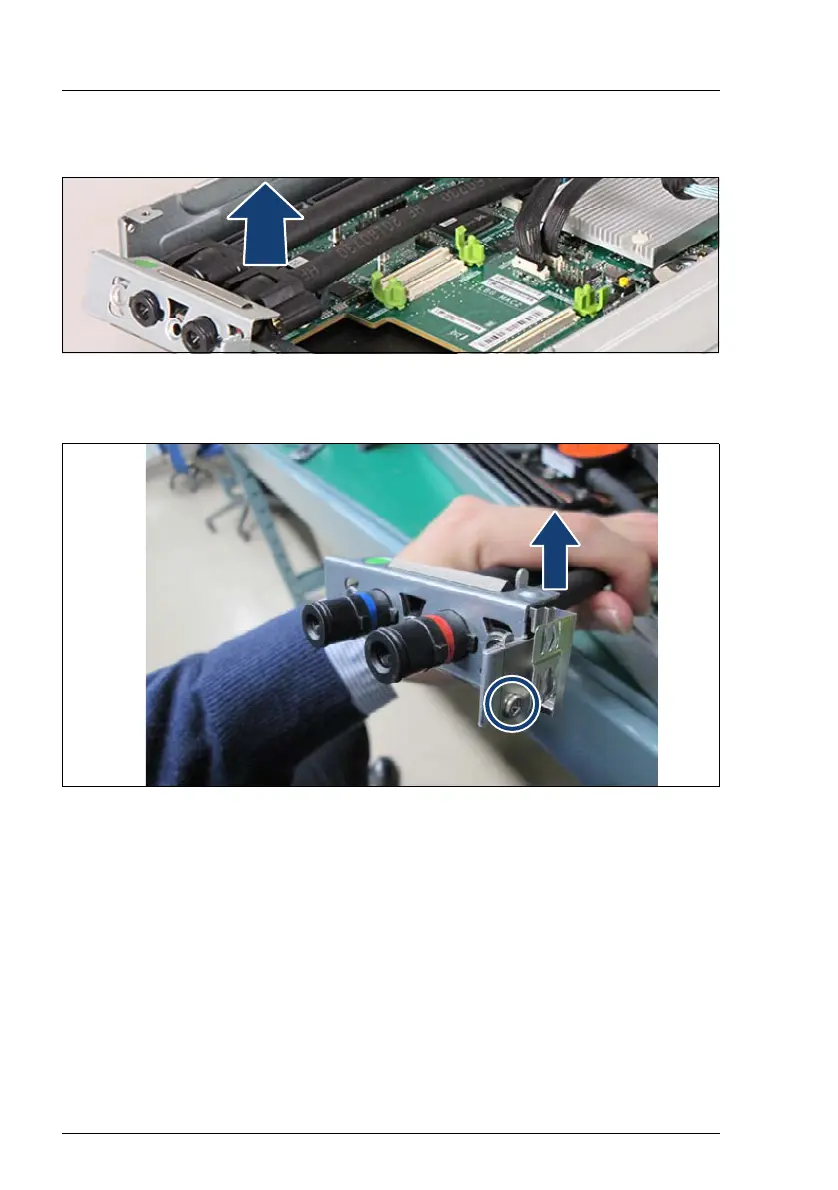

Figure 86: Removing the flexible tubes
Ê Remove the LC flexible tubes from the tray.
Figure 87: Removing the EMI gasket from the LC bracket
Ê Remove the M3 screw from the LC bracket and then remove the EMI gasket
from the LC bracket (see arrow).
