CX400 M4 Disassembly and Recycling Instructions 67
Disassembly and recycling

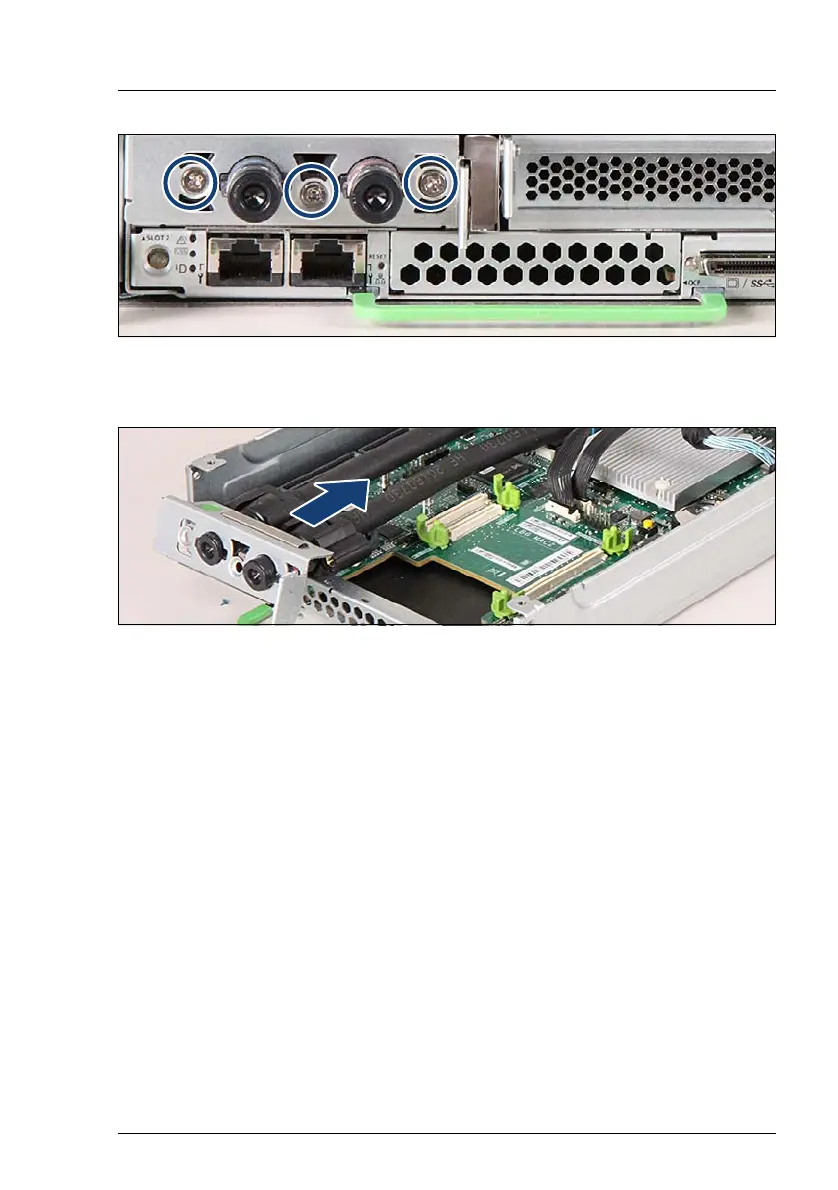

Figure 88: Removing the LC bracket
Ê Remove the three screws (see circles).
Figure 89: Removing the flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
Removing the LC heat sinks
Ê After pulling both flexible tubes through the holes of the LC bracket, lift the
LC heat sinks off the system board.
