68 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Removing the CPU

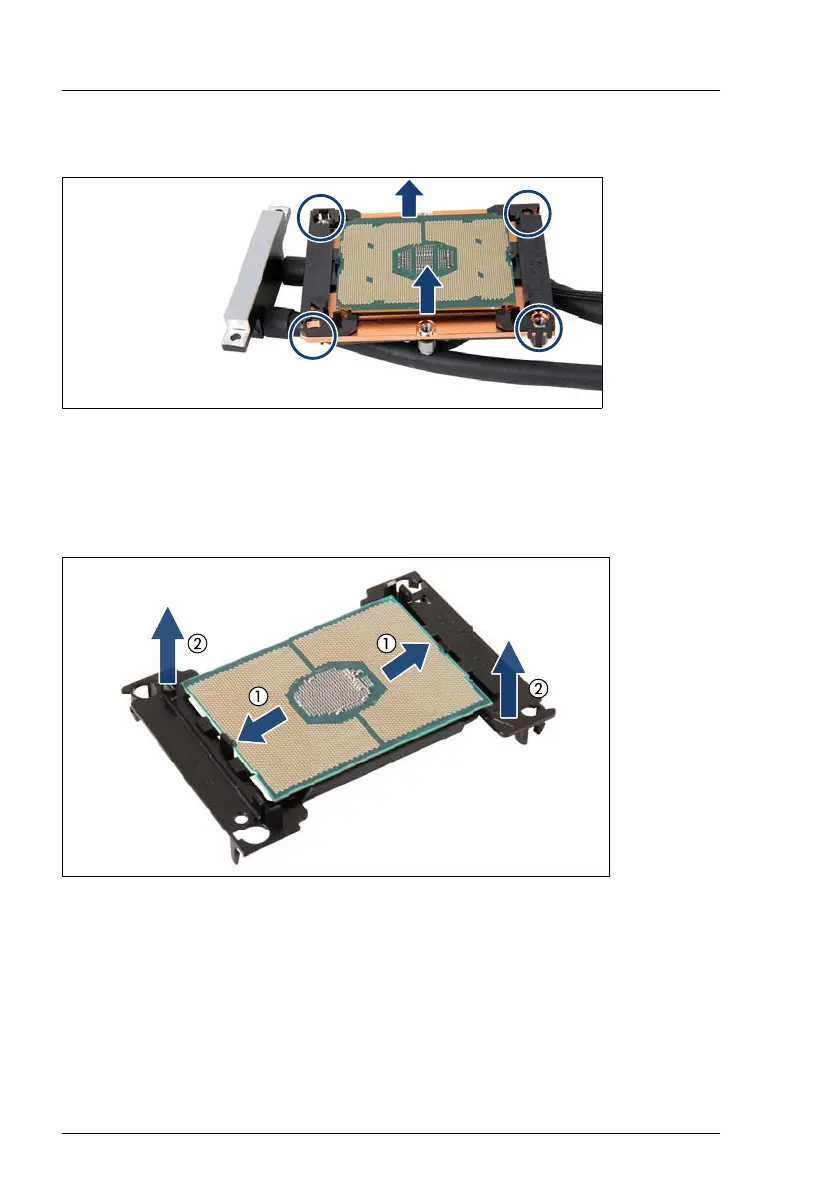

Figure 90: Removing the CPU frame
Ê Release the four hooks (see circles).
Ê Carefully twist the CPU back and forth to detach the CPU frame from the
heat sink (see arrows).
Figure 91: Removing the CPU
Ê Press the two noses in the direction of the arrows (1) and remove the CPU
from the CPU frame (2).
