Processors Installing a second processo
r

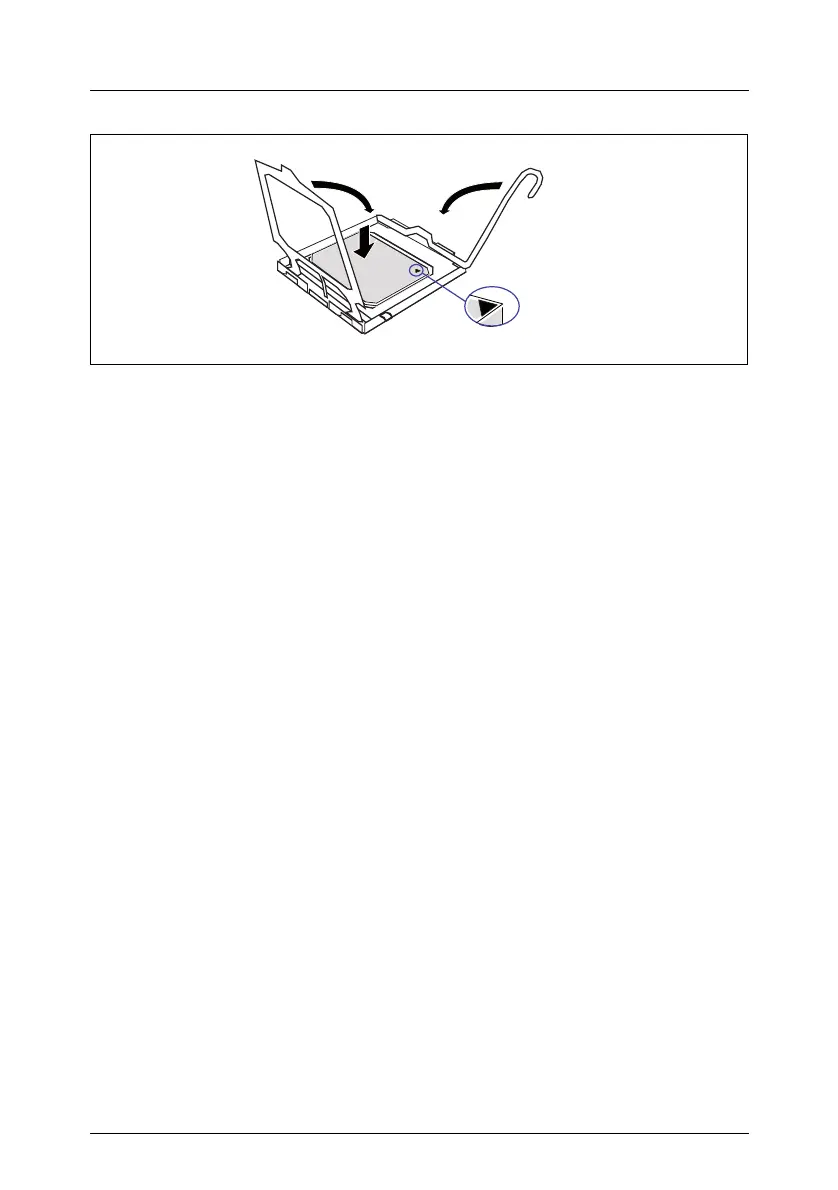

Figure 11: Installing the processor
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
Ê Close the cover (2).
Ê Lock the processor in place in the socket by returning the socket lifter to its
original position (3).
1
2
3
