28 Options Guide RX200 S3
Installing a second processor Processors
Installing the heat sink

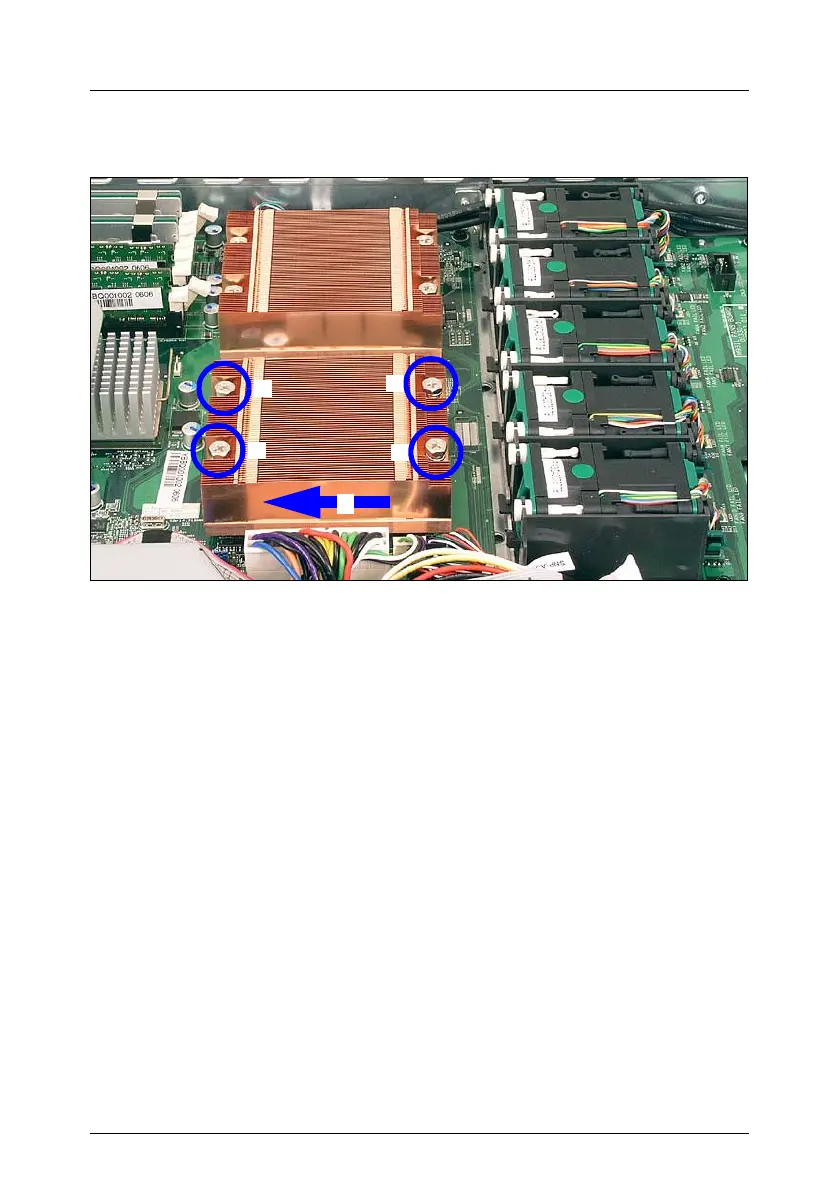

Figure 12: Installing the heat sink
Ê Fit the heat sink on the processor such that the airflow arrow (1) is facing the
rear side of the server.
Ê Attach the heat sink with four screws. Tighten the screws in diagonally
opposite sequence (2).
V CAUTION!
Never install a processor without a heat sink! The processor is likely to
overheat, which may cause damage to the processor and the system
board.
Installing the air duct
Ê Reinstall the air duct. Reattach the air duct. Ensure that the hooks on the air
duct (see figure 8 on page 24) engage on the fan’s rear panel.
Ê Close the server, plug in the power plugs, and switch on the server as
described in the chapter “Completion” on page 41.
2
1
2
2
2
