104 Operating manual RX200 S4
Replacement of non-hot-plug components CSS components
8.2.2.2 Identifying a defective CSS component

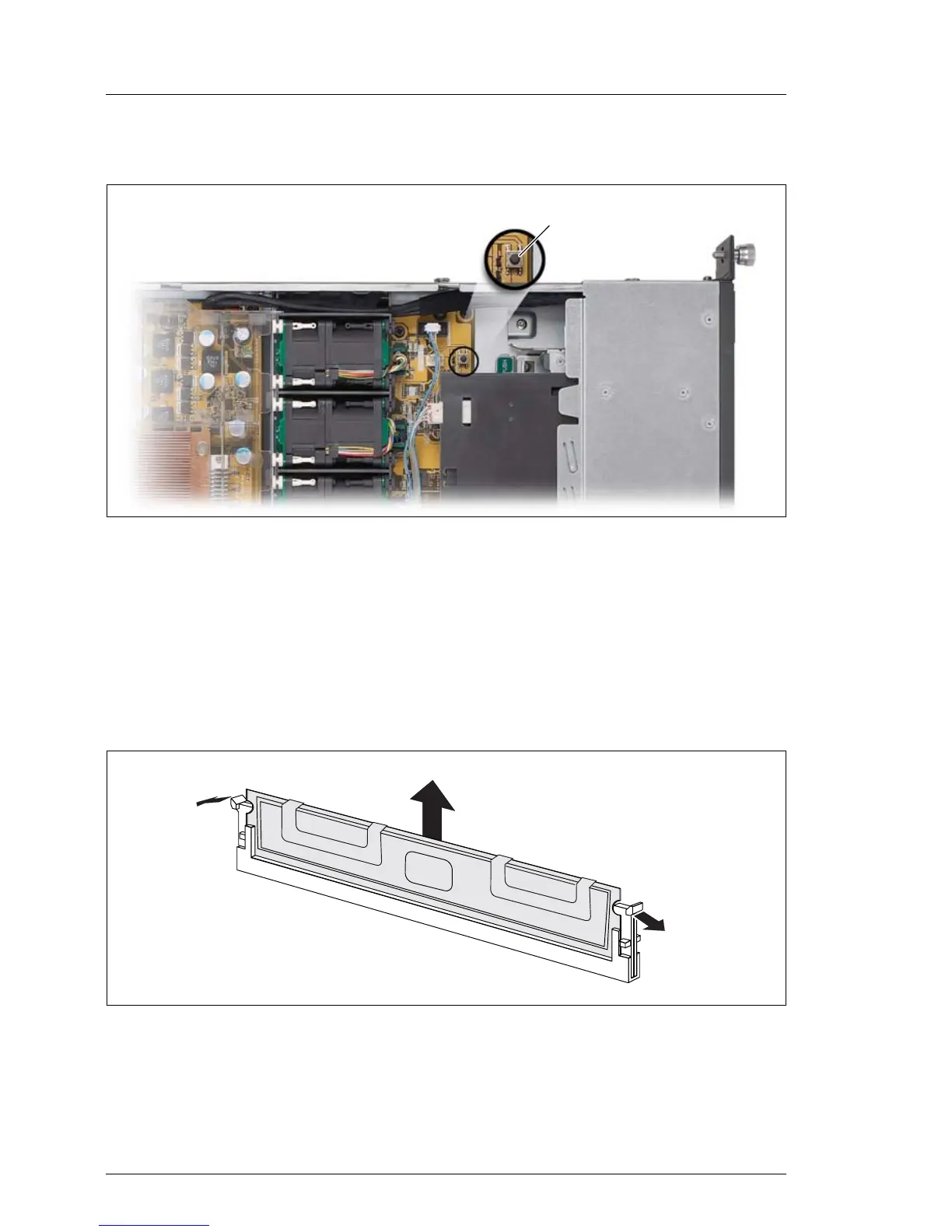

Figure 33: Indicate CSS button
Ê Press the Indicate CSS button (1).
The PRIMERGY Diagnostic LED of the defective CSS component lights up
orange and displays, which CSS component on the system board needs
replacing (memory module or expansion card).
8.2.2.3 Removing a defective memory module
Figure 34: Removing a memory module
Ê Fold the ejection levers outwards on both sides of the corresponding slot (1).
This will cause the memory module installed in the slot to be ejected.
Ê Remove the memory module (2).
