Racks with installation depth smaller/greater than 735 mm
The lengths of the telescopic rails have to be adjusted with respect to each other
when installing in rack systems with an installation depth greater than/less than
735 mm. The length is adjusted with the spring element on the variable support
Ê Secure the telescopic rails as described in section “Installation in PRIME-
CENTER/DataCenter Rack” on page 46.
Ê Mount the server (see section “Inserting the server” on page 51) and route
the cables as described in the rack manual.
4.2.3 Inserting the server

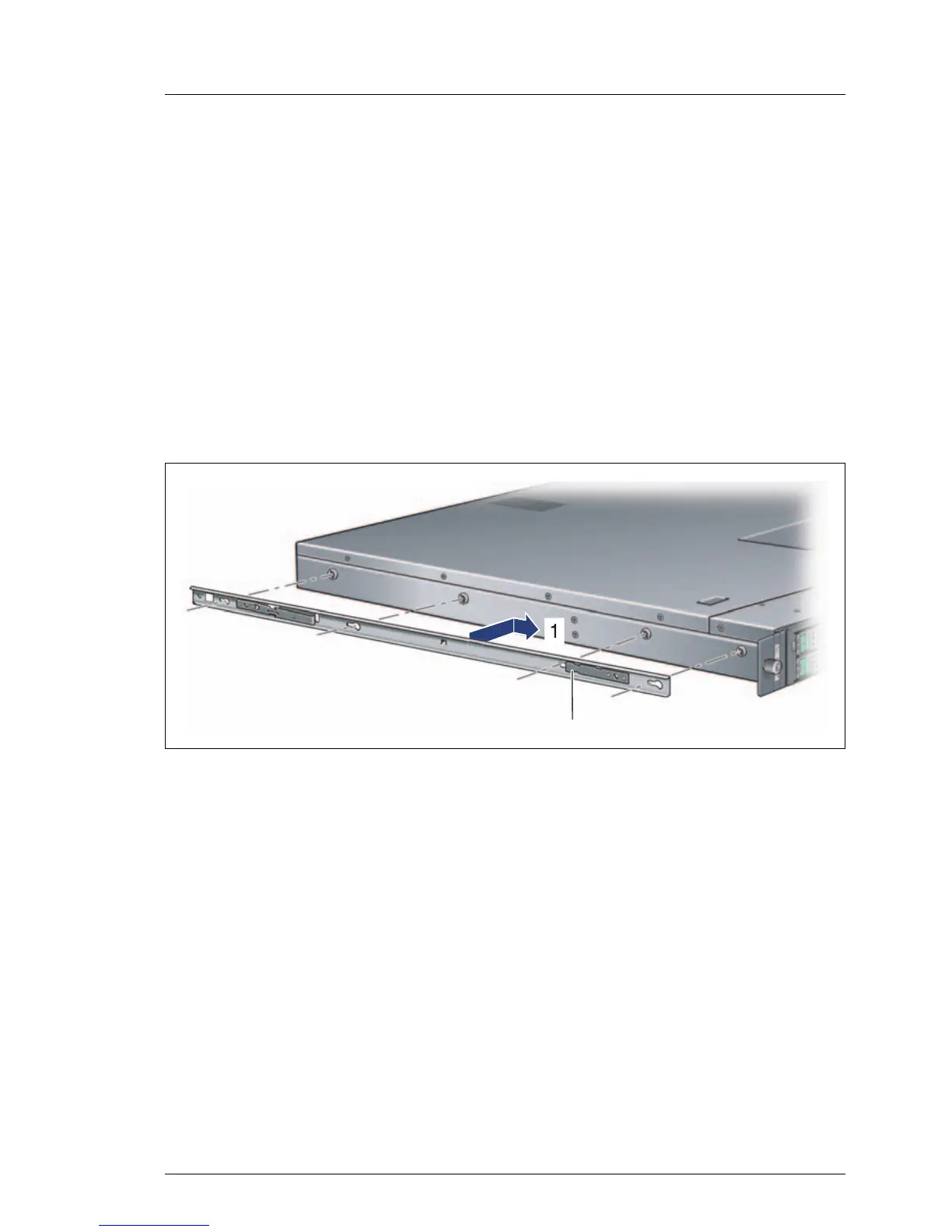

Figure 6: Preparing the server
Ê Place the server rails on the four screws on both sides of the server and slide
the server rails forwards to secure them (1).
The safety spring (a) must engage with an audible click.
1
a
