Fujitsu Primergy RX200 S4 Operating Manual

112 Operating manual RX200 S4
Replacement of non-hot-plug components CSS components
8.2.4 Assembling the server

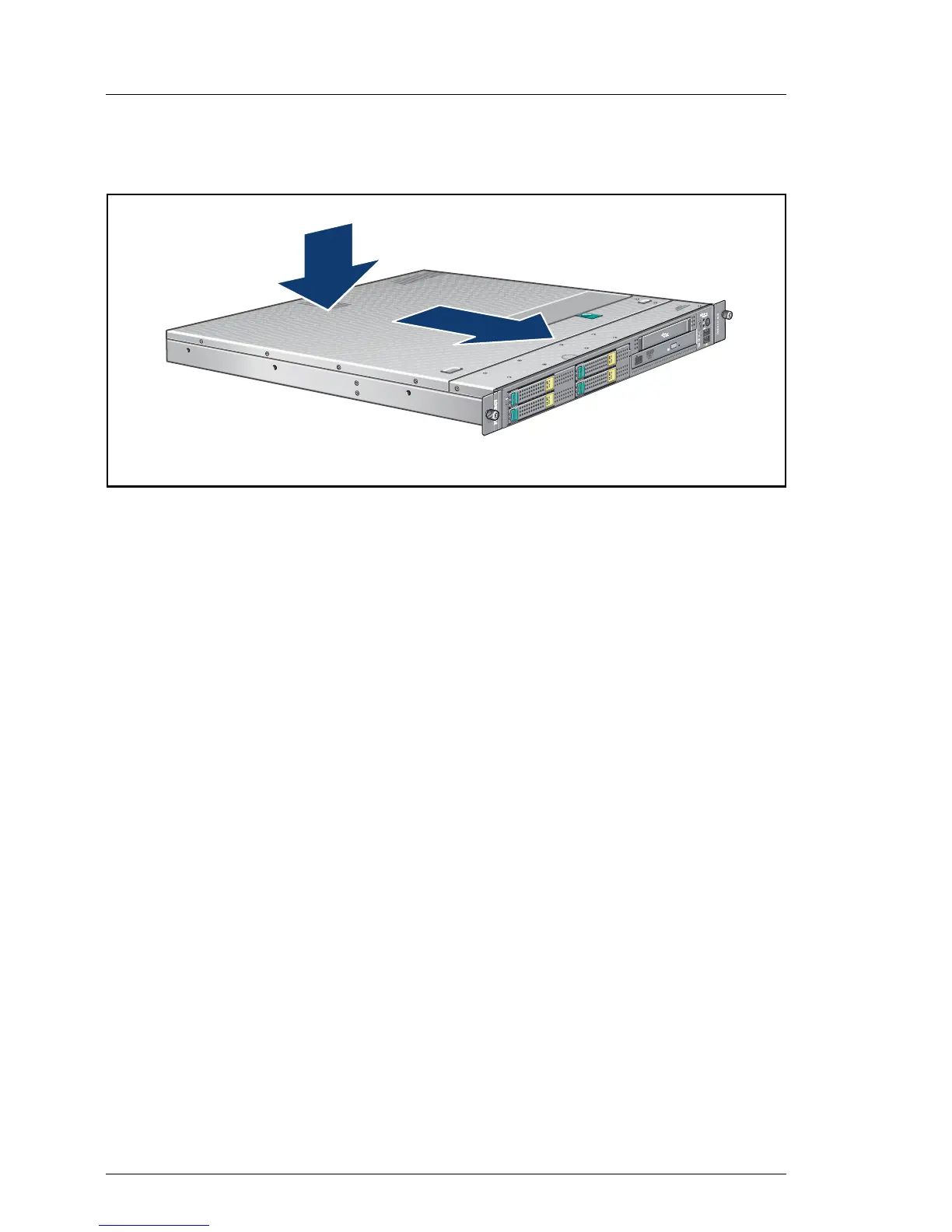

Figure 42: Mounting the housing cover
Ê Place the housing cover on the server (1).
Make sure that each bolt is positioned in the corresponding nut.
Ê Push the housing cover as far as it will go in the direction of the arrow (2).
The housing cover must click into place.
CO
M
PACT
High Speed
CO
M
PACT
High Speed
C
SS
1
2
