Hot-plug components CSS components
8.1.1.1 Remove the dummy module
The mounting location for the second hot-plug power supply unit contains a
dummy module. This dummy module must be removed before installing a
second power supply unit.
Ê Push the green catch to the left.
Ê Pull the dummy module out of its slot by the handle.
V CAUTION!
Store the dummy module in a safe place. If the power supply unit is
removed and not replaced with a new unit, the dummy module must be
reinstalled due to cooling, to comply with applicable EMC regulations
(regulations on electromagnetic compatibility) and to protect against fire.
8.1.1.2 Installing the hot-plug power supply unit

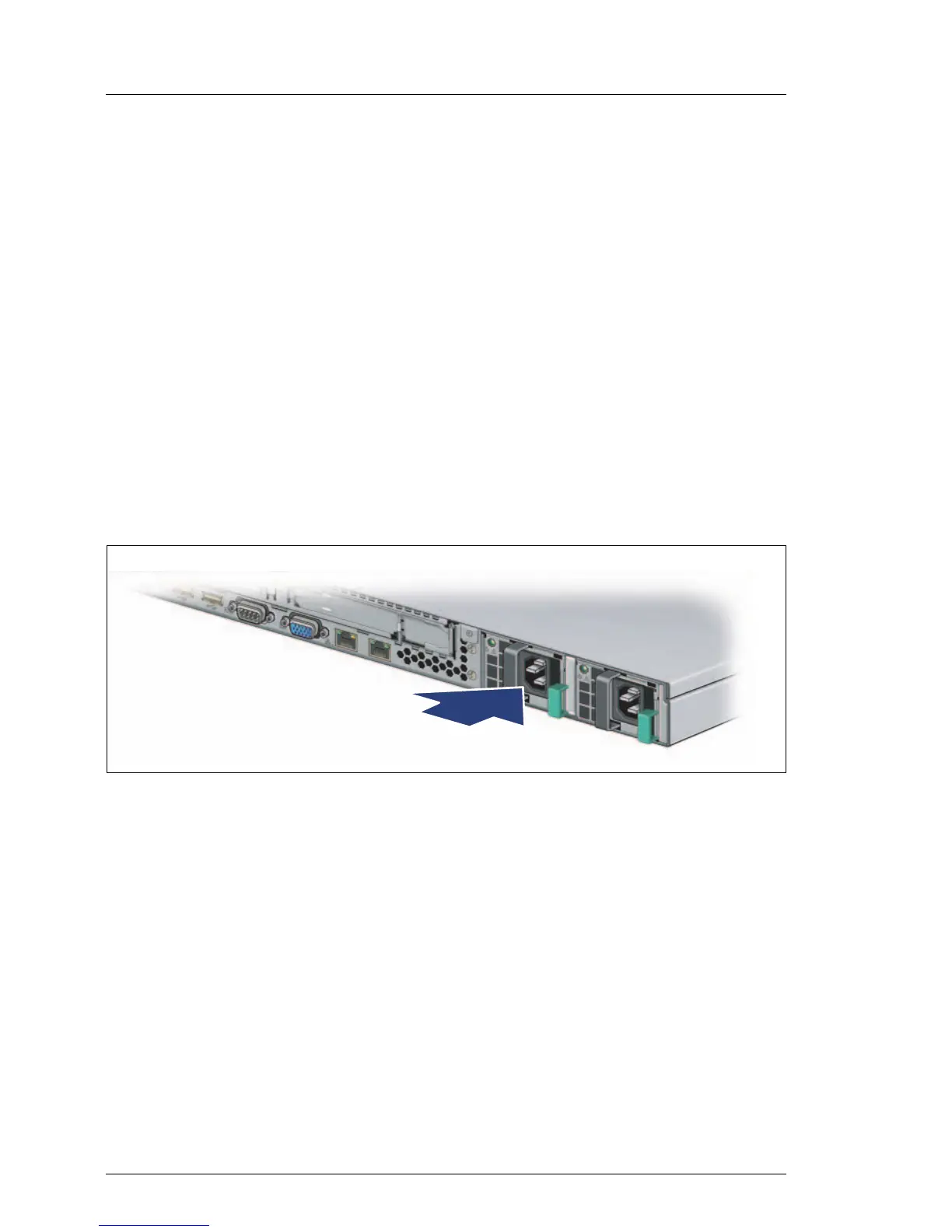

Figure 18: Installing the power supply unit
Ê Slide the new power supply unit into the empty slot until it clicks into place.
I Make sure that the power supply unit engages correctly in the slot and
is locked in position.
This is the only way to prevent the power supply unit from sliding out
of its mountings and being damaged during transportation.
Ê Connect the newly installed power supply unit (see section “Connecting the
server to the mains” on page 55).
