88 Operating manual RX200 S4
Hot-plug components CSS components

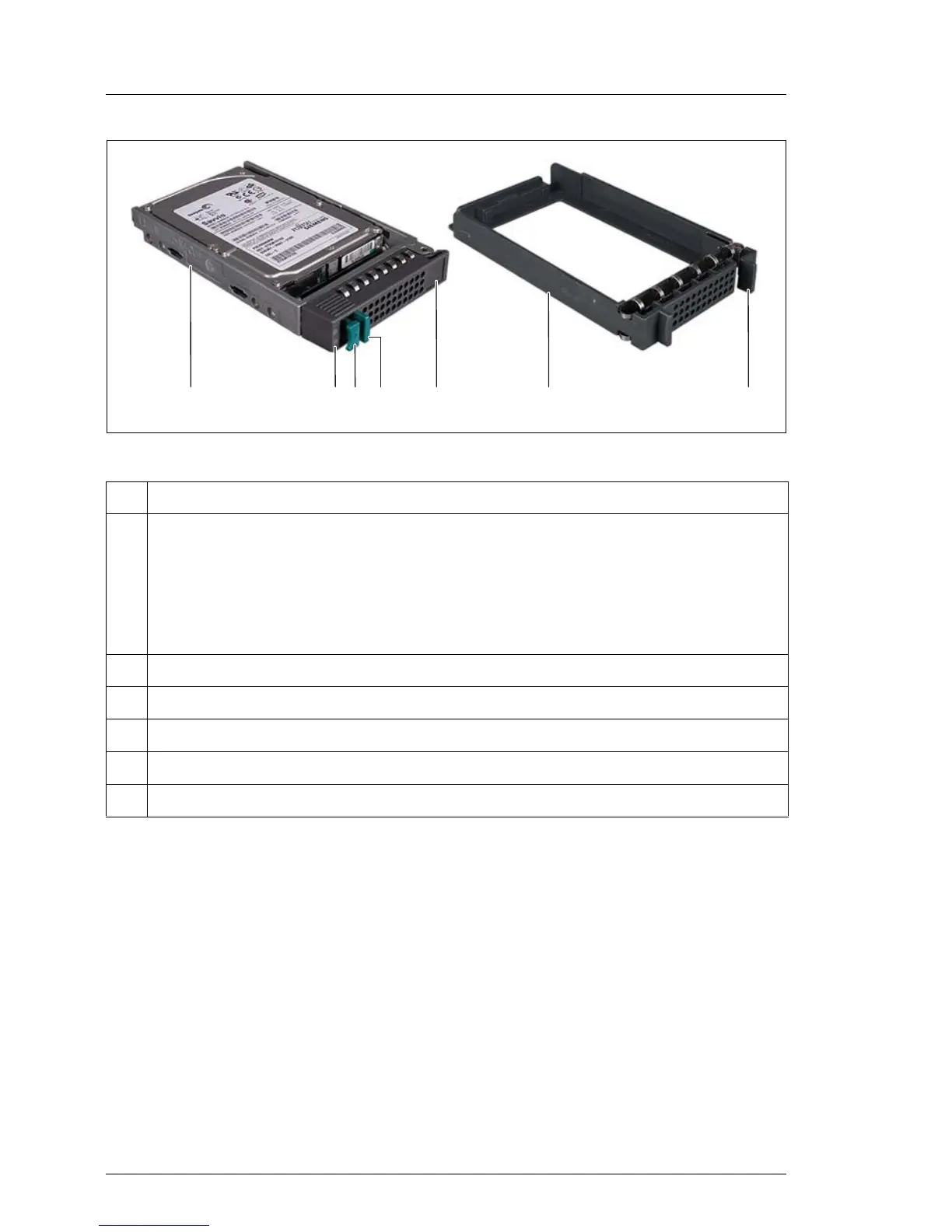

Figure 21: 2.5-inch HDD module and dummy module
1 HDD module (installation frame with hard disk drive installed)
2 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section “Hard disk drive control indicators” on
page 61.
3 Handle for locking and unlocking the HDD module
4 Button for locking and unlocking the handle
5 Ridge for applying a sticker with the current drive name
6 Dummy module
7 Tabs for unlocking the dummy module
123 45 6 7
