RX200 S4 Operating manual 95
CSS components Hot-plug components
Installing the 2.5-inch HDD module

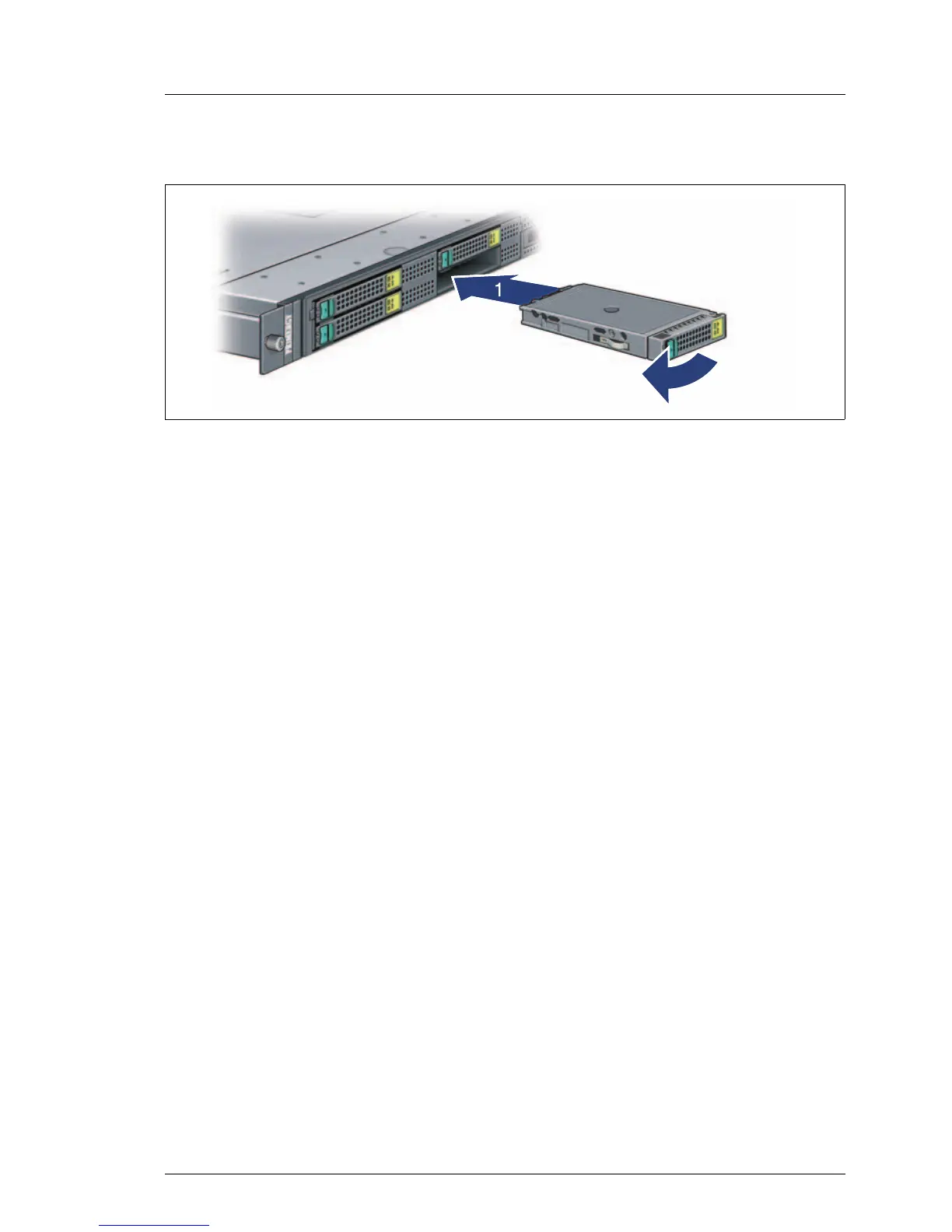

Figure 27: Installing the 2.5-inch HDD module
Ê Unlock the HDD module as described in section “Unlocking the 2.5-inch
HDD module” on page 93.
Ê Carefully push the HDD module into the empty slot (1) until it stops.
Ê Push the handle completely (2) until the locking mechanism engages.
1
2
