104 Operating Manual RX200 S5
Replacement of non-hot-plug components CSS components
Installing an expansion card

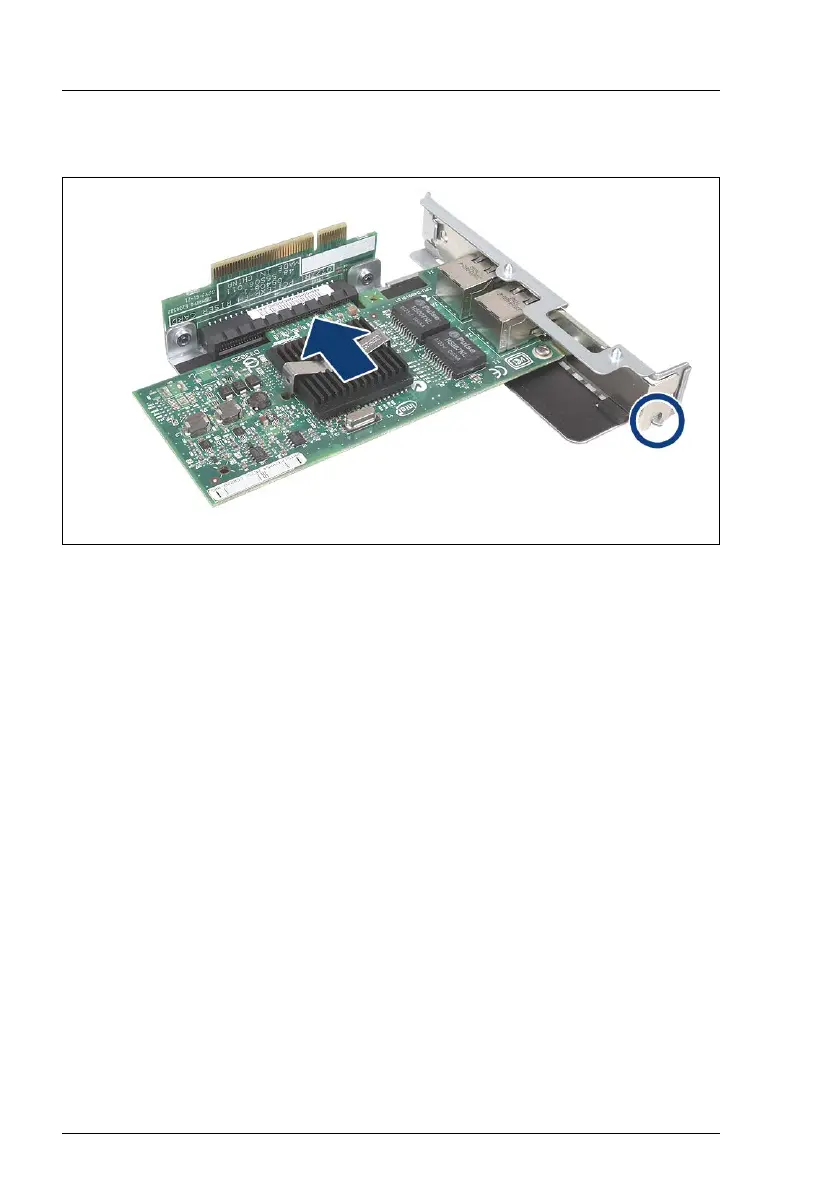

Figure 37: Riser card holder equipped with a controller
Ê Insert the expansion card in the slot of the riser card.
I Make sure that the rear cover fits into the correct notch (see circle).
Ê If necessary, connect the cable to the expansion card and the other
components.
Reinstalling the riser card holders
Ê Position the riser card holder over the relevant slot on the system board.
Ê Carefully push the riser card holder into the slot by pressing on the green
points ("touch points").
Ê Close the server (see section "Closing the server" on page 105), connect all
power plugs to the power outlets and switch on the server.
