Fujitsu PRIMERGY RX200 S5 User Manual

RX200 S5 Operating Manual 91
CSS components Hot-plug components
8.1.3.1 Opening/closing the fan cover
V CAUTION!
The fan cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires. The fan cover must
not remain open for longer than 15 minutes.

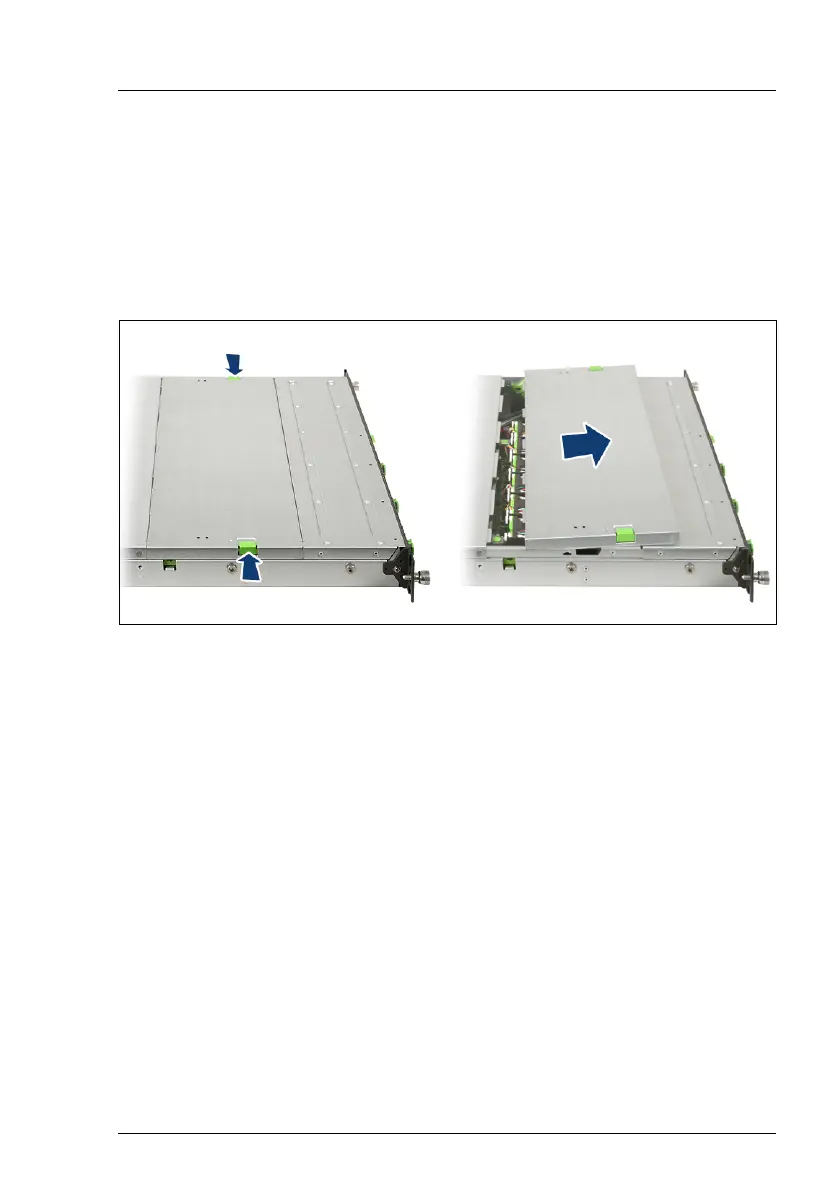

Figure 23: Opening the fan cover
Ê Push the two green buttons in the direction of the arrow (1), pull the fan cover
forward slightly and then lift it up and off.
To close, place the fan cover on its mounting and press it onto the housing until
it clicks into place
1
1
2

Fujitsu PRIMERGY RX200 S5 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF9
Processor cache	4 MB
Processor cores	4
Processor model	E5504
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	15
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	2.5 \
Total storage capacity	0 GB
Internal memory	4 GB
Memory clock speed	1066 MHz
Maximum internal memory	96 GB
Memory layout (slots x size)	2 x 2 GB
Networking features	Gigabit Ethernet
Expansion slots	1x PCI-Express 2 x4 2x PCI-Express 2 x8
PS/2 ports quantity	0
USB 2.0 ports quantity	7
Ethernet LAN (RJ-45) ports	3
Power supply	459 W
Power requirements	100 - 127 V / 200 - 240 V
Power supply input frequency	50 - 60 Hz
Compatible operating systems	Microsoft Windows Server 2008 Microsoft Windows Server 2003 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Citrix XenServer VMware Infrastructure VMware vSphere 4.0
Chassis type	Rack (1U)
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CE, CB, RoHS, WEEE
Processor ARK ID	40711

Weight and Dimensions

Depth	765 mm
Width	431 mm
Height	43 mm
