Fujitsu PRIMERGY RX200 S5 - Installing a New Memory Module

RX200 S5 Operating Manual 99
CSS components Replacement of non-hot-plug components
8.2.2.4 Installing a new memory module
V CAUTION!
Please note the equipping rules in the technical manual for the system
board D2786.

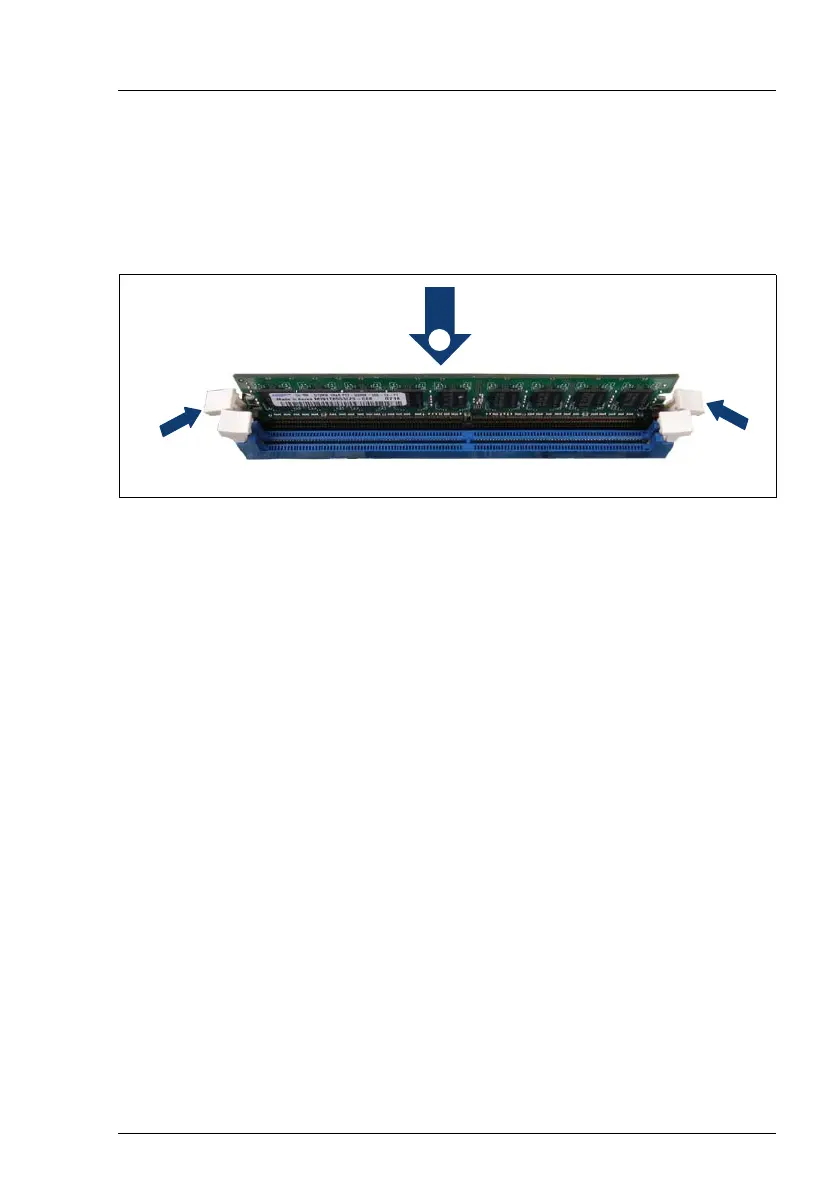

Figure 32: Inserting a memory module
Ê Carefully press the memory module into the slot (1) until the fastening tabs
on both sides of it engage (2).
Pay attention to the plug coding.
/
