Fujitsu PRIMERGY RX200 S5 - Using the Cable Clamp

RX200 S5 Operating Manual 53
Hardware installation Connecting the server to the mains
4.4.1 Using the cable clamp
Alternatively, you can secure the power cables in a cable clamp to ensure that
the insulated connectors cannot be disconnected from the server accidentally.

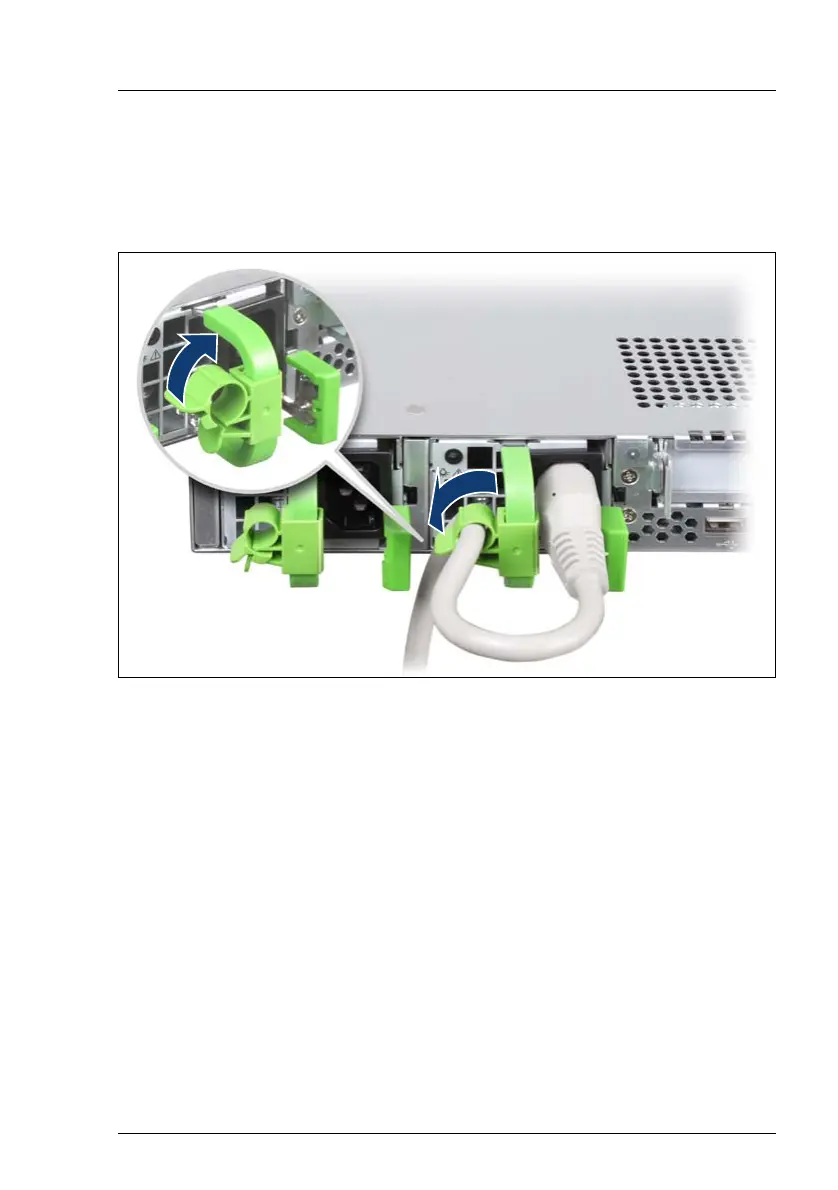

Figure 11: Cable clamp
Ê Pull the cable clamp up (1).
Ê Thread the power cable through the cable clamp.
Ê Press the cable clamp down until it engages to secure the cable.
1
2
