Fujitsu PRIMERGY RX200 S5 - Exchanging the Fan

92 Operating Manual RX200 S5
Hot-plug components CSS components
8.1.3.2 Exchanging the fan
Ê Open the fan cover (see section "Opening/closing the fan cover" on
page 91).

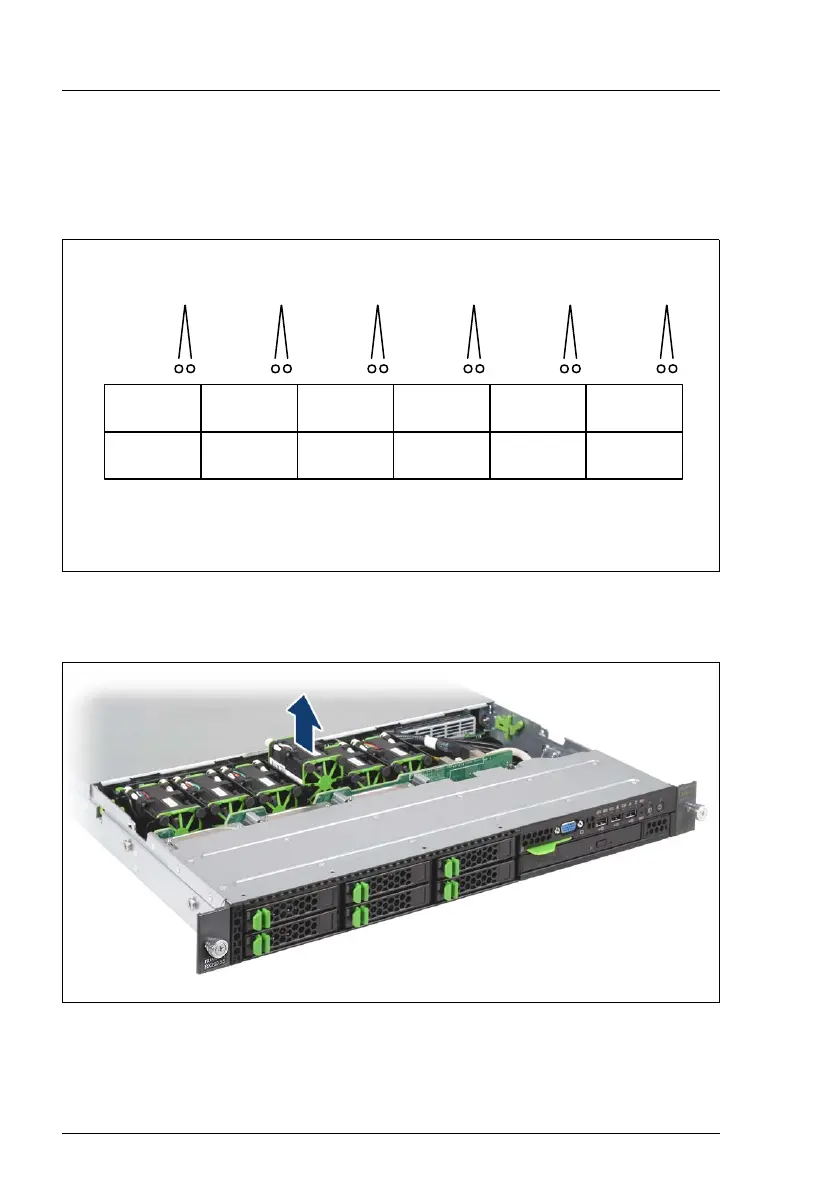

Figure 24: Arrangement of fans and the corresponding indicators
Ê Use the LED (lights up orange) to identify the defective fan.
Figure 25: Removing the fan
Ê Take hold of the fan unit by the green edges and lift it out of the housing.
FAN SYS 1
FAN SYS 2
FAN SYS3
FAN SYS 4
FAN SYS 5
FAN SYS 6
FAN SYS 7
FAN SYS8
FAN SYS9
FAN SYS 10
FAN SYS 11
FAN SYS 12
Front
LEDs LEDs LEDs LEDs LEDs LEDs
