84 Operating Manual RX200 S5
Hot-plug components CSS components
8.1.2.1 HDD module and dummy module
The hard disk drives which can be ordered for the PRIMERGY RX200 S5 are
supplied already mounted in an installation frame so that defective drives can
be replaced and new drives can be added during operation. The hard disk drive
and installation frame together make up the HDD module.

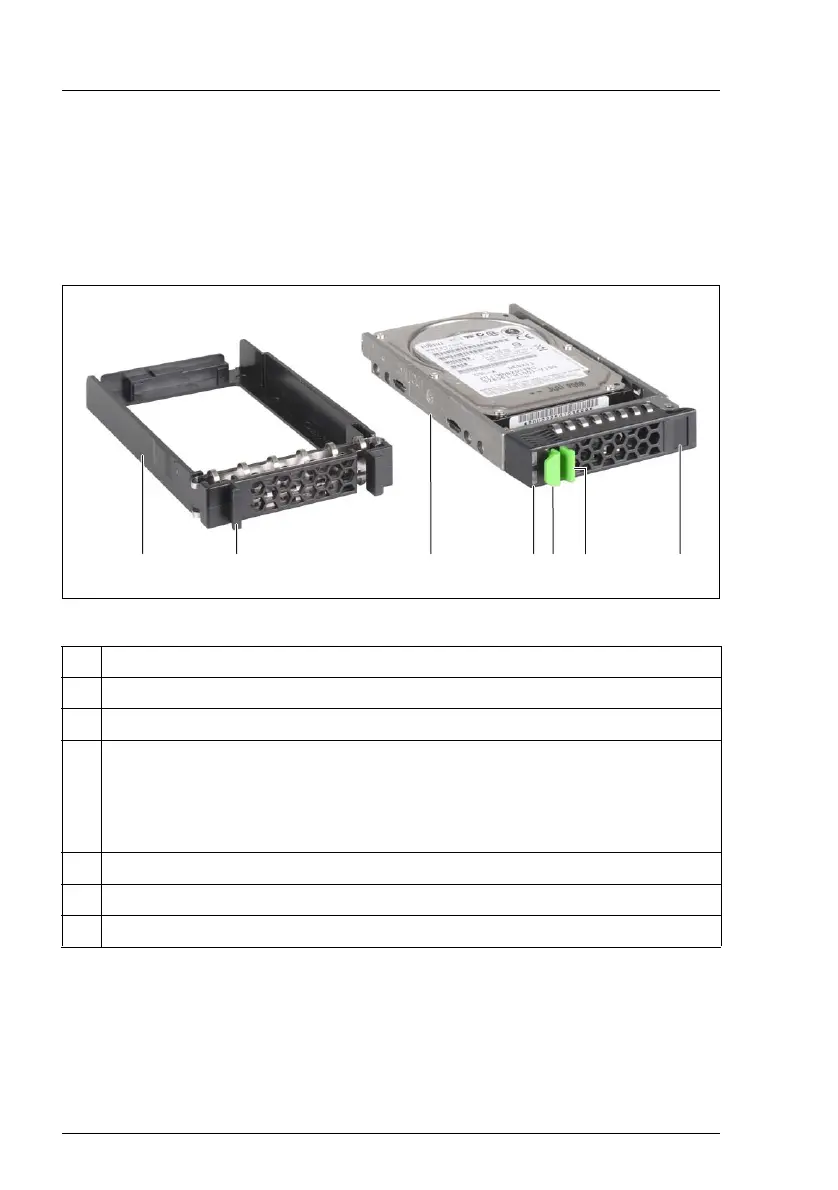

Figure 19: 2.5-inch HDD module and dummy module
1 Dummy module
2 Tabs for unlocking the dummy module
3 HDD module (installation frame with hard disk drive installed)
4 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section "Hard disk drive indicators" on page 59.
5 Handle for locking and unlocking the HDD module
6 Button for locking and unlocking the handle
7 Ridge for applying a sticker with the current drive name
12 3 45 6 7
