98 Operating Manual RX200 S5
Replacement of non-hot-plug components CSS components
8.2.2.3 Removing a defective memory module

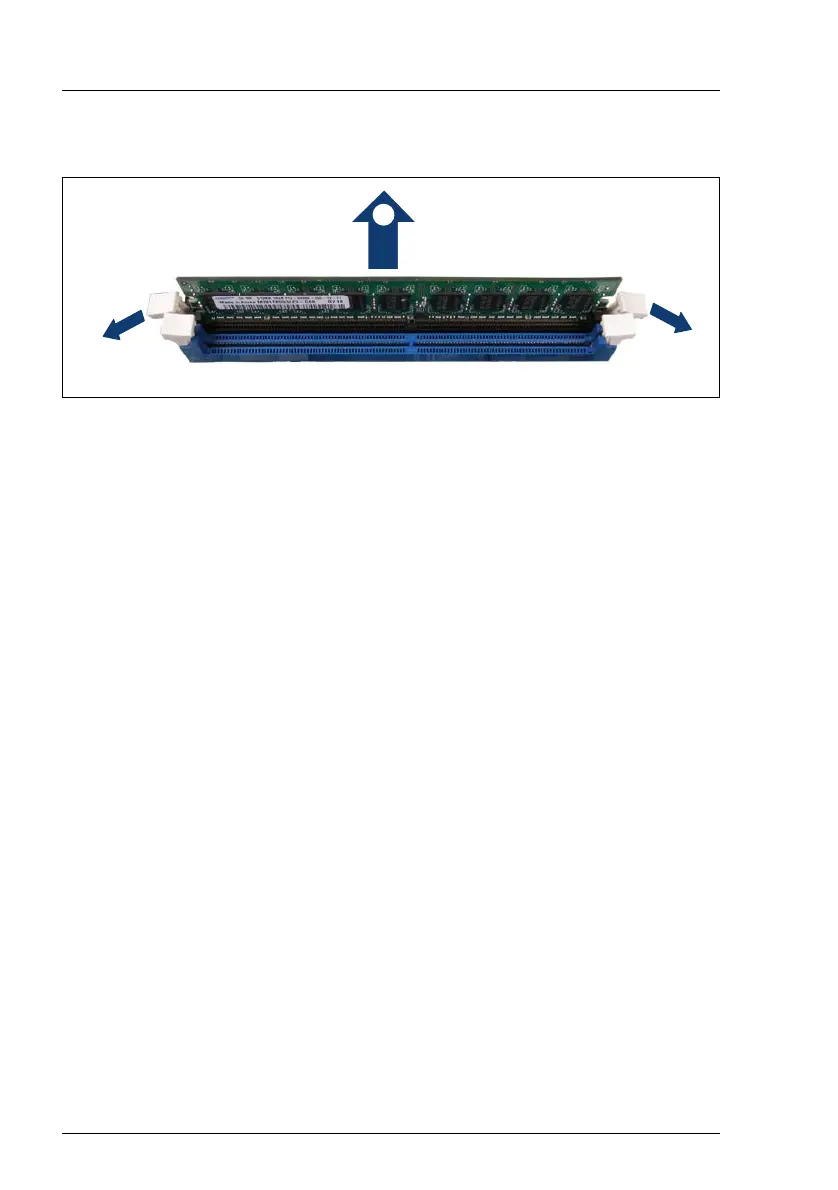

Figure 31: Removing a memory module
Ê Press the holders on either side of the mounting location concerned outward
(1).
Ê Pull the defective memory module out of the slot (2).
/
/
