RX200 S5 Operating Manual 45
Hardware installation Installing/removing the server in/from the rac
Installing the support systems

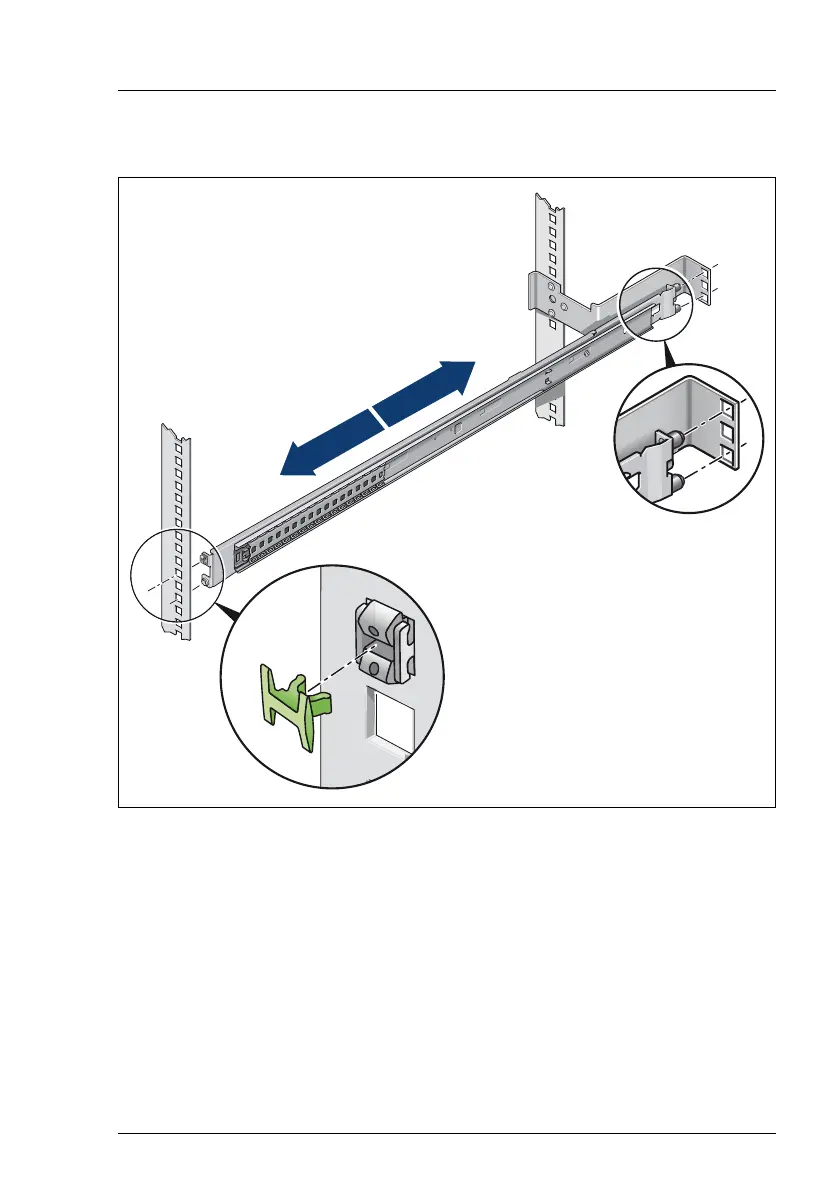

Figure 5: Fit the left support system in the PRIMECENTER/DataCenter rack
Ê Position the left support system in the support bracket (insert retaining bolts)
- see (1).
Ê Clamp the left support system (2) between the front left support upright and
the support bracket by pressing it together, positioning it on the front support
upright and releasing it again. The support system automatically adjusts to
the rack depth.
Ê The support system no longer has to be fixed to the front support upright
because the easy lock engages and ensures a firm fit.
1
3
2
