RX200 S6 Options Guide 51
HDD modules
Removing the existing HDD backplane (6x HDD)
Ê Remove all HDD modules from the housing.

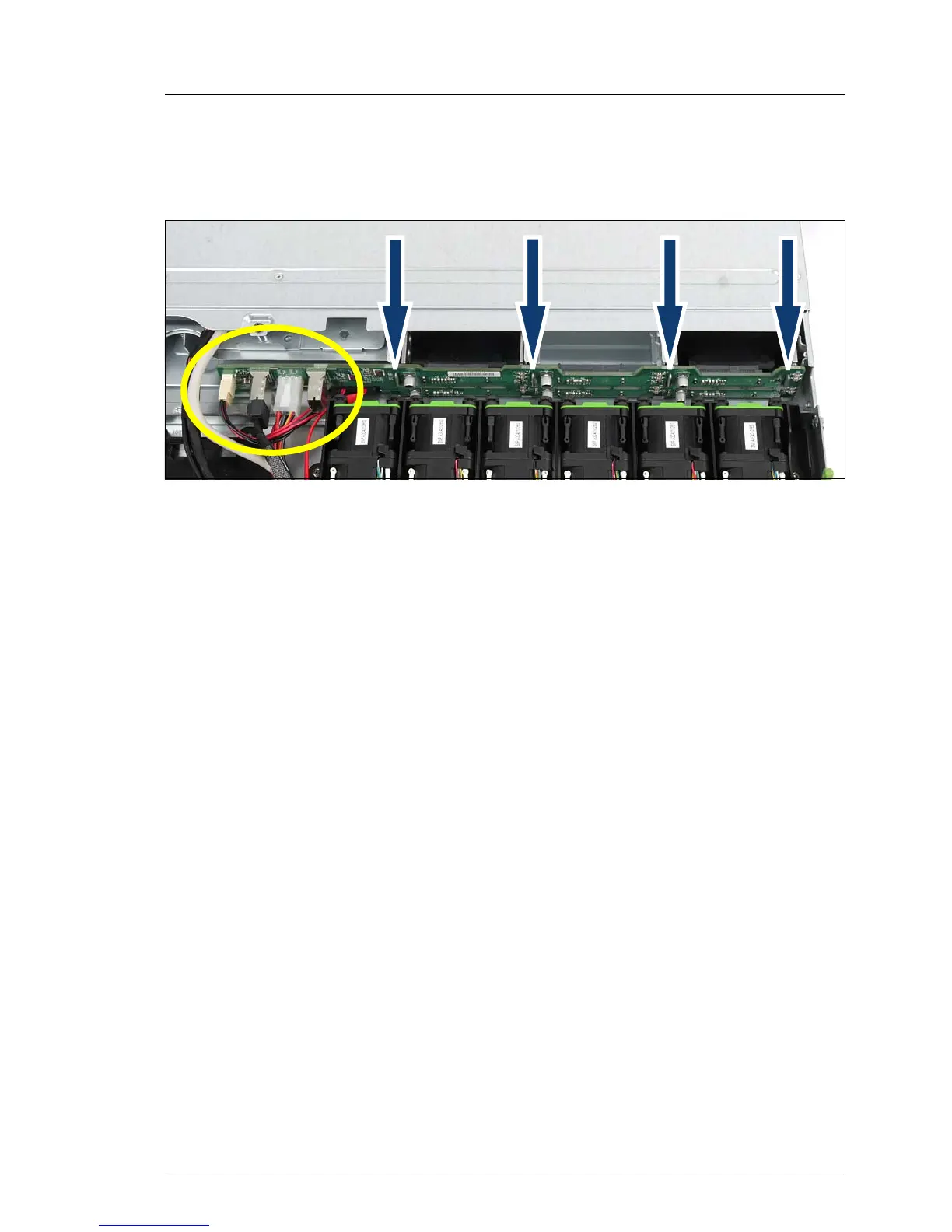

Figure 21: Removing the HDD backplane
Ê Disconnect all cables from the HDD backplane (see circle).
Ê Lift the HDD backplane over the metal bars (see arrows) and then remove it.
Installing the new HDD backplane (8x HDD)
Ê Place the new HDD backplane (8x HDD) on the metal bars (see arrows in
figure 21) and press the HDD backplane down carefully.
Ê Connect all the required cables to the HDD backplane (see figure "Cabling
for up to 8 HDD modules with optional RAID controller" on page 80).
