52 Options Guide RX200 S6
HDD modules
Installing the HDD cage

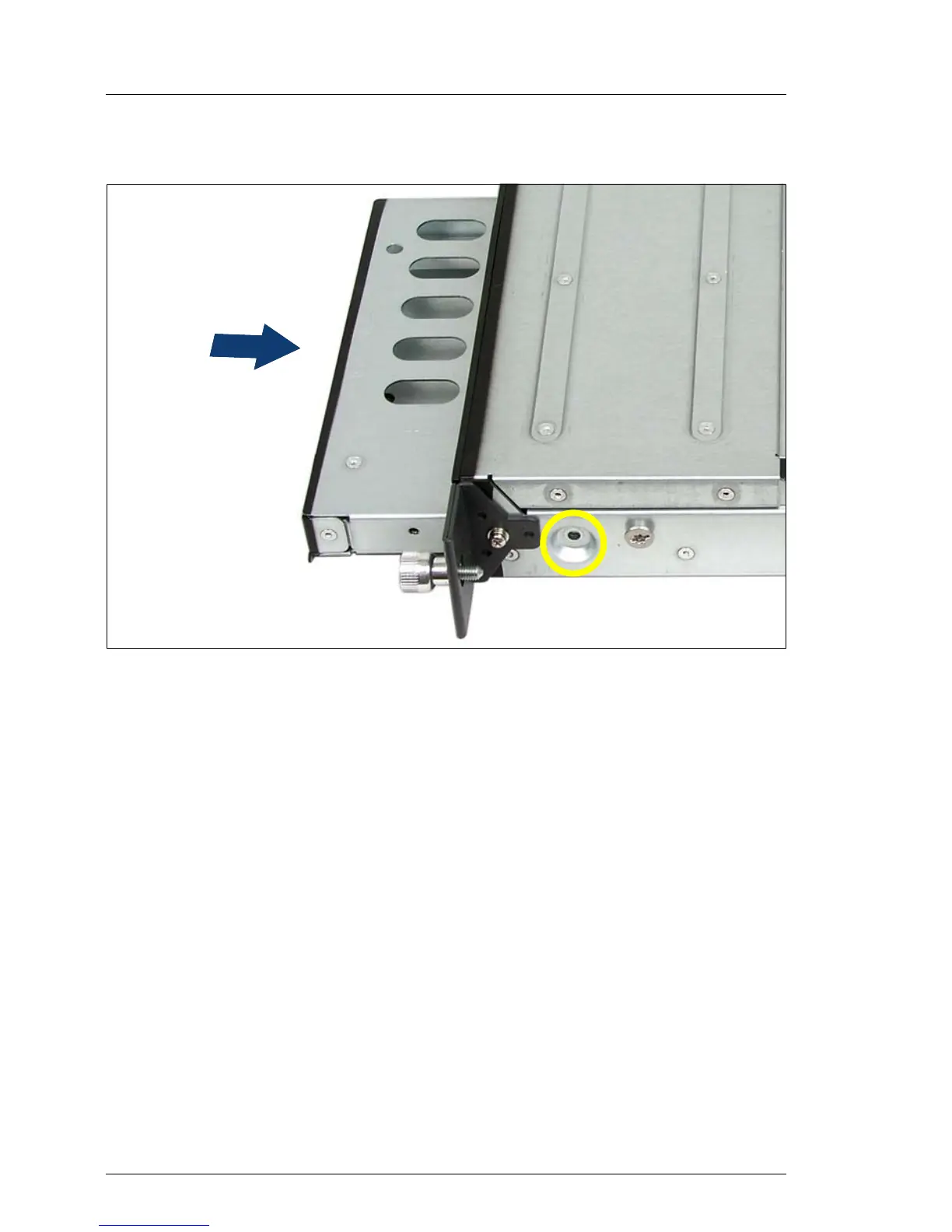

Figure 22: Installing the HDD cage
Ê Push the HDD cage into the housing.
Ê Fasten the HDD cage with one screw (see circle).
