RX200 S6 Options Guide 53
HDD modules
Inserting the HDD modules

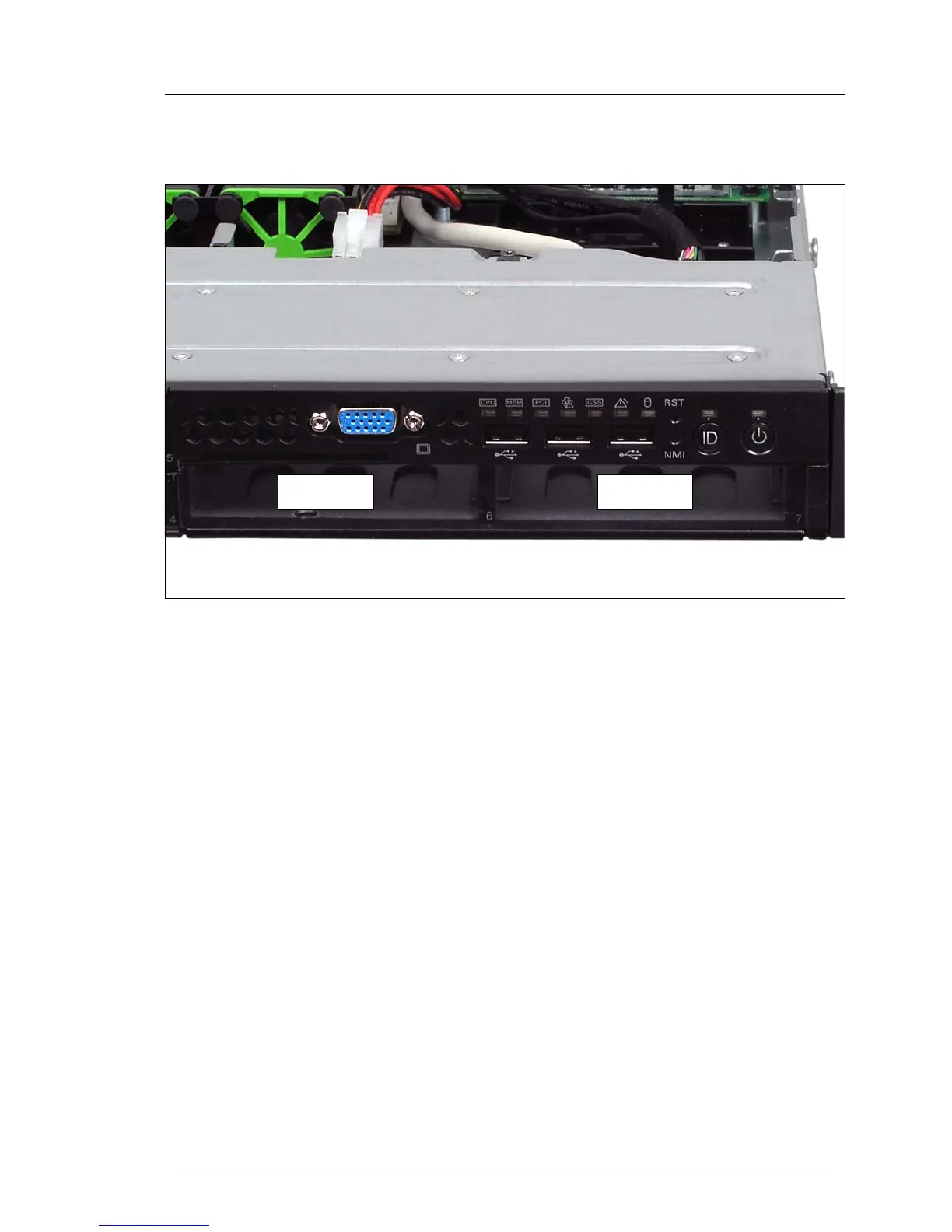

Figure 23: Installation positions of the additional HDD modules
Ê Push the additional HDD modules into the two bays (left side = HDD #6, right
side = HDD #7) of the HDD cage (description see the Operating Manual).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 73.
HDD #6 HDD #7
